i-mate SP5m

Gadgeteer Hands On Review by Rob Tillotson

January 25, 2006

The smartphone designers at HTC recently introduced their fourth-generation product, code-named “Tornado” and running the latest Windows Mobile operating system. Like previous generations, the Tornado is (or at least will be) available under many different brand names including those of major wireless carriers; i-mate is among the first to offer it for consumer purchase.

i-mate markets two versions of the Tornado design which are based on the same hardware but are packaged differently. The i-mate SP5 is the business-oriented design, while the SP5m reviewed here is targeted at consumers, with a silver housing and dedicated media player keys. Other versions of the Tornado (such as should be substantially similar, but may add or remove software or hardware features. (The Cingular 2125, for example, lacks WiFi.)

Opening the Box

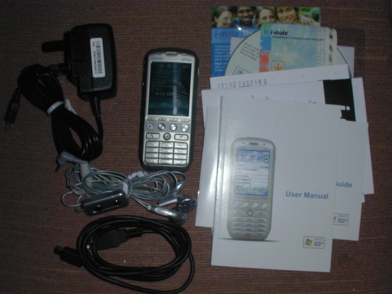

The SP5m ships with a typical set of accessories:

• SP5m phone
• Multi-voltage power adapter with European plug
• Stereo earbuds with microphone and volume control
• USB cable
• Belt clip case (not shown in image above)
• ActiveSync and Outlook 2002
• Manuals and documentation

The review model also included a US power adapter and a 128MB MiniSD card; retail packaging might differ. The phone will charge through the USB cable, which uses the same mini connector commonly found on cameras.

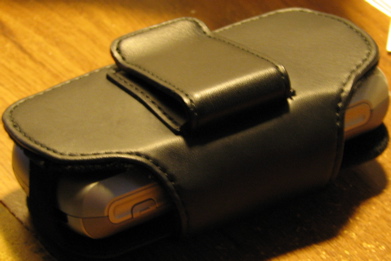

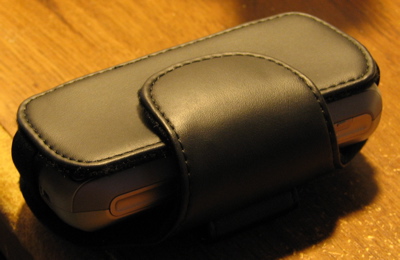

The supplied case does not fit quite as well as it could, but it holds the phone securely and the belt clip is snug.

Hardware Specifications

The SP5m is comparable to most Windows Mobile smartphones:

• GSM 850/900/1800/1900 for compatibility with all North American and European GSM networks
• GPRS (Class 10, 32-48 kbps) and EDGE (up to 236 kbps)
• Windows Mobile 5 Smartphone Edition operating system
• 64MB RAM (18MB available for user data and apps)
• 200 MHz TI OMAP CPU
• MiniSD memory card slot
• 240×320, 65k color display
• USB port
• Bluetooth v1.2
• WiFi 802.11b
• 1.3 megapixel (1280×1024) camera
• Up to 5 hours talk time, 250 hours standby with included battery

Physical Design

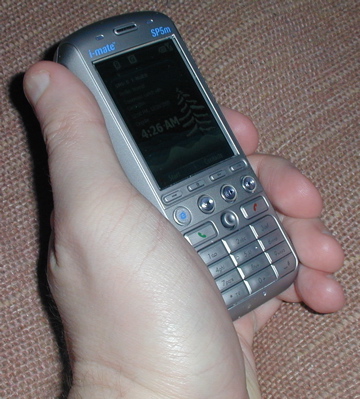

The SP5m is compact and fits nicely in the hand. Build quality is good with no creaks or uncomfortable edges, and it has just the right amount of heft to it. The display takes up more than half of the face, squeezing seven rows of keys into the area below. The keypad is a bit small; people with large hands may find it cramped.

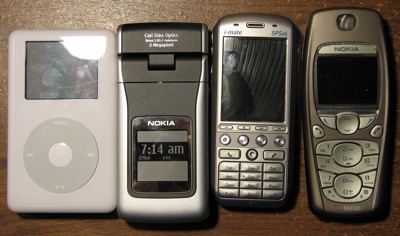

(Left to right: iPod 30GB, Nokia N90, SP5m, Nokia 3595)

(Bottom to top: iPod 30GB, Nokia N90, SP5m, Nokia 3595)

As you can see from the comparison images above, the SP5m is compact, smaller than even the much less featureful, entry-level Nokia 3595.

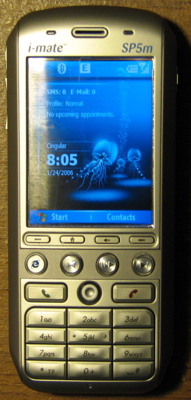

Since the SP5m does not have a touch-sensitive screen, the small joystick nub just above the number keys is used for navigation, in conjunction with the home, back, and left and right softkeys found in the row just below the display. Also present is a row of four round keys which are hard-wired to start the web browser and control the music player.

The display is easily one of the best I have seen on a mobile device recently. Small details are easy to see, the backlighting is bright and even, and colors are vivid. (The screen shots I took for this review don’t really do it justice.)

Above the display, two LEDs flank the speaker. One changes colors to show network and charging status, and the other blinks when WiFi or Bluetooth are turned on.

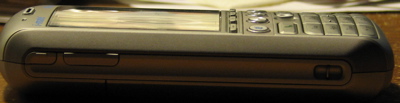

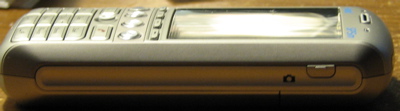

On the right side of the SP5m, near the top, is a button which starts the camera software and takes a picture. On the left is the volume rocker and an additional button which opens the Communication Manager (described more fully below).

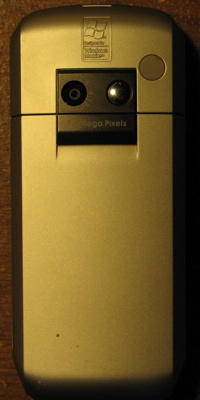

The camera lens is located in a typical position on the back of the SP5m, along with a self-portrait mirror. Above it, a gray rubber plug covers an external antenna port.

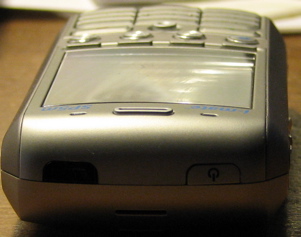

The power button is located at the top end of the SP5m, next to the infrared port.

The only external connectors on the SP5m are a headset jack (which does not accept ordinary stereo headphones without an adapter) and a mini USB port which is used for both synchronization and charging.

The MiniSD memory card slot is positioned underneath the battery, a baffling inconvenience considering that the SP5m is positioned as a music and media phone.

Software

There are two kinds of devices that are commonly called “smartphones”. Some are the combination of a PDA with a full-sized phone; others are phones with advanced software but without the large touch screen of a PDA. The SP5m is in the latter category; if it is a full-featured PDA you are looking for, consider a Treo or HP iPaq instead.

The SP5m runs the Smartphone edition of Windows Mobile 5, the latest mobile operating system from Microsoft. The Smartphone edition of Windows Mobile 5 shares the same code base as the PDA edition, with changes to the user interface to accommodate the lack of a touch screen. The standard software bundle includes:

• Contacts, Calendar, and Tasks
• SMS/MMS messaging
• POP3, IMAP, and Outlook email
• Voice notes
• Still and video imaging
• Picture and video library
• Mobile Internet Explorer
• Windows Media Player
• Speed dial/voice command manager
• File manager
• Task manager
• Pocket MSN
• MIDlet manager for Java applications
• ActiveSync
• Communication Manager
• Games (Solitaire and Bubble Breaker)

Notably absent from the usual collection of Windows Mobile software are Pocket Office and Microsoft Reader, smartphone versions of which do not exist yet. You could install third-party software to replace them, but if you need to do that you should probably consider a PDA phone instead.

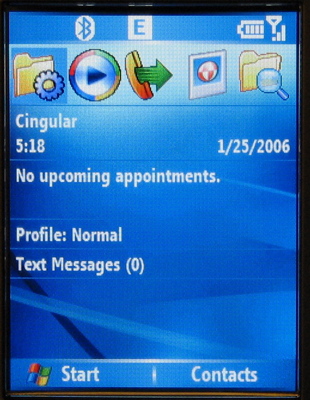

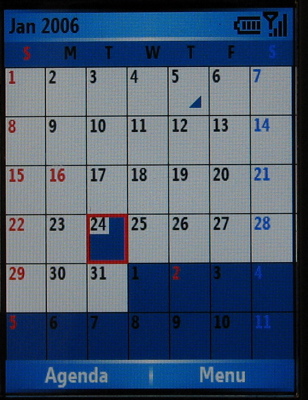

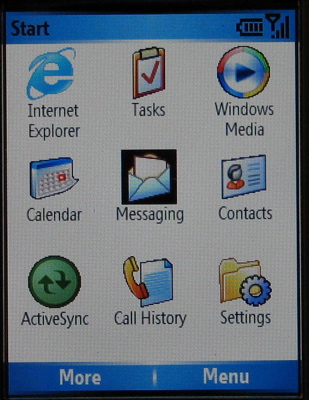

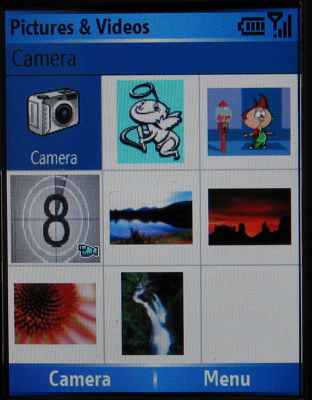

The home screen is customizable, and the PIM software is similar to that on Windows Mobile PDAs. The program launcher uses a 3×3 icon grid so you can select applications from the keypad.

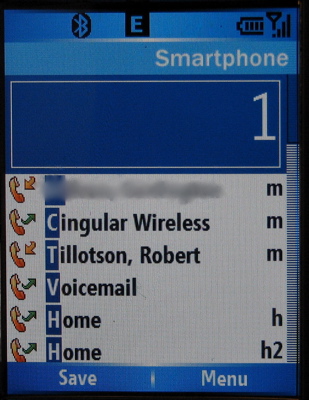

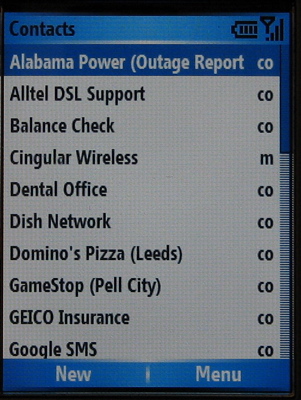

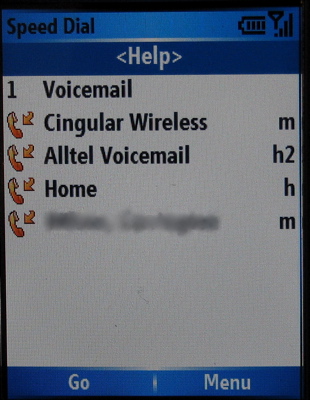

In addition to the Outlook-compatible contact manager, the built in software allows programmable voice tags and will look up contacts as you key in letters of their name.

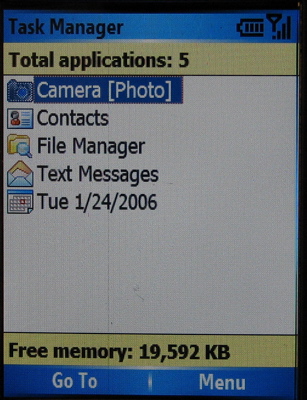

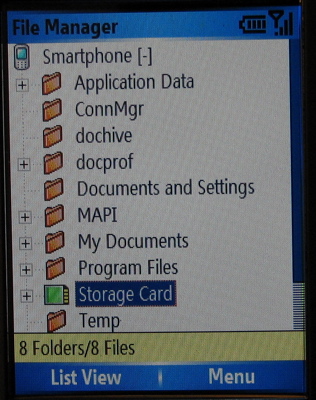

A reasonably full-featured file manager is included, as is a task manager from which you can stop running tasks to free up memory. (In normal usage this should not ever be necessary, but if you use a lot of third party applications it is still possible for the system to slow down if too much is running in the background.)

Windows Mobile 5, unlike previous versions, uses the same code base on smartphones and PDAs. In theory, this should make it much easier for developers to write one application that supports all devices. Even so, running PDA-oriented software on a smartphone is still likely to be difficult because of the lack of a touch-sensitive screen.

Performance

I tested the SP5m on the Cingular and T-Mobile networks in my area. My home has usable but not great Cingular “Orange” 850 MHz coverage and is on the fringe of T-Mobile; Cingular also has 1900 MHz coverage in the city, on the former AT&T (“Blue”) network. The RF performance of the SP5m is about as good as most other phones I have tried, with no unexpected dropouts on either network. I was unable to extensively test data speeds, but the SP5m successfully uses Cingular’s EDGE network, opening pages and downloading files much faster than my other, GPRS-only phones.

The SP5m’s software performance is good, but seems to rely on leaving commonly used applications open; opening a program for the first time can take several seconds. This is likely to be an issue if you run a lot of add-on software, but for everyday use of standard phone functionality the built-in memory is sufficient to keep all the necessary programs running.

Voice quality is good, and the built-in speaker is loud, though not quite as loud as some other phones I have tried.

Using the SP5m

Music and Media

The SP5m is positioned as a music phone, to the point of having dedicated media player buttons on its keypad. The built in Windows Media Player application handles both music and video, and it will synchronize tracks and playlists with the desktop. The supported formats include MP3, WMA, and AAC (unprotected only) for audio and MPEG-4 and Windows Media for video. Streaming is also supported, and works well over WiFi. If you have a solid EDGE connection, you should be able to listen to audio streams over the air as well, but I wouldn’t recommend trying that unless you have an unlimited data connection.

One thing you will definitely want to do if you use the SP5m for music is get a better set of headphones. A set of earbuds (with mic for hands-free calling) are supplied in the box, but their audio quality leaves a lot to be desired. The audio connector uses a four-conductor 2.5mm jack, so you’ll need an adapter to use a standard headset.

Wireless Internet and Bluetooth

Unlike most phones, “smart” or otherwise, the SP5m includes 802.11b (WiFi) capability, so you can use it with existing wireless networks. Not only is this a great way to save money if you don’t have an unlimited data plan from your wireless carrier, but it will usually be much faster than the speeds you will get over the air.

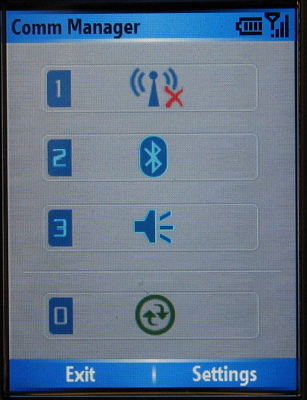

Pressing a dedicated button on the left side of the SP5m opens the Connection Manager, shown here:

From here you can turn WiFi and Bluetooth on and off, activate silent mode, or start ActiveSync by pressing a numbered key. If WiFi is on, the SP5m will automatically connect to any of your preferred networks whenever you are in range. If it finds a new network, you will be prompted before it connects. If you need to configure WEP or WPA security, an advanced settings panel is available in the phone menus.

The SP5m’s WiFi works flawlessly on my home network as well as at the public hotspots I have visited. It doesn’t seem to be much harder on the battery than a voice call, but I still wouldn’t recommend leaving it on all the time.

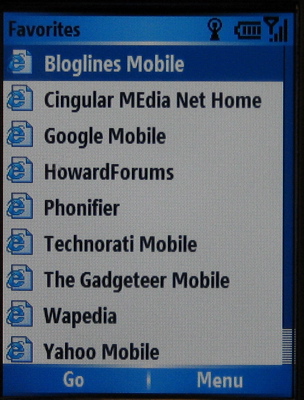

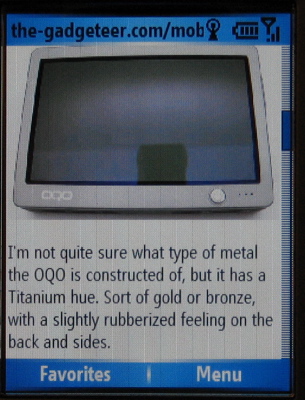

The built-in Internet Explorer web browser supports many web features and does a passable job at squeezing full-sized sites into a small display, although you’ll probably want to use mobile-oriented sites whenever possible.

The SP5m supports Bluetooth 1.2, which offers improved audio quality and resistance to interference compared with Bluetooth 1.1. With a compatible headset (mine is a Plantronics Voyager 510) audio is clear and voice dialing works well.

I did notice a couple of quirks in the Bluetooth implementation. One is that there is no way to force reconnection to a device that is already paired, without pairing it again. If you use it with a headset that supports multiple devices, this means that if you turn the headset off after using it with something else, the SP5m may not find it again later unless you go through the pairing process again. Another minor issue I noticed is that if you set the SP5m to be discoverable through Bluetooth, that setting sometimes doesn’t stick for more than a minute or so. I think this is probably by design, but since there is no warning about it in the user interface I can’t be sure.

Synchronization

Like all Windows Mobile products, the SP5m synchronizes very well with Windows, and not at all with any other desktop platform. It is supplied with ActiveSync 4.0 as well as Outlook 2002 (in case you don’t have a newer version already). Once installed on the desktop, ActiveSync stays running in the background and keeps the phone’s contacts, calendar, and tasks up to date continuously as long as it is plugged in. The SP5m will also use the desktop’s Internet connection as long as it remains tethered, even if WiFi is available. ActiveSync also provides a browser for the phone’s file system, so you can easily copy music, pictures, programs, and other files to it.

Since I normally use a Mac to manage my personal information, I have only used ActiveSync for contacts (which I copied over to Outlook as vCards) and copying files. I was hoping to use Missing Sync or PocketMac, but neither of those applications support Windows Mobile 5 yet.

I am also somewhat disappointed that WiFi syncing (or network sync of any kind, for that matter) is not supported. Microsoft apparently removed network sync in ActiveSync 4.0, just when WiFi is becoming commonplace in mobile devices. Bluetooth sync is still supported, though.

Camera

As with most camera phones, the SP5m’s imaging capabilities are minimal, useful only for the sake of convenience. Pressing a button on the top right of the device starts the camera software, and pressing it again takes a picture. The lens is fixed focus, there is no flash, and the maximum resolution is 1280×1024. Image quality is typical of most camera phones: relatively poor.

(Click on the thumbnails above to view the original image taken directly from the phone.)

In the examples above, I attempted a self-portrait first under normal room lighting, slightly dim but well within the exposure capabilities of a typical digital camera. When that didn’t work too well, I tried again with direct lighting. Finally, the last example is of some trees in my back yard, to show detail. It should be obvious that the SP5m isn’t going to replace a dedicated camera any time soon; if you need a camera phone with decent imaging quality, try something along the lines of a Nokia N90.

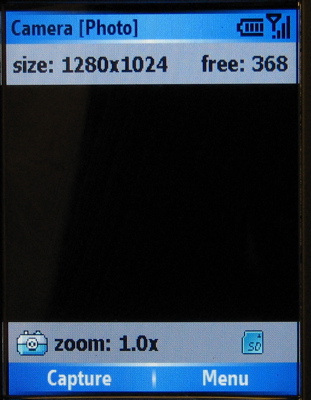

The camera application is basic, offering modes for general photography, messaging, and contact photos. The only imaging options are digital zoom (up to 8x at lower resolutions) and an “ambience” setting which conflates white balance, exposure, and color settings into a single menu. Images can be saved directly to the memory card and managed with a separate “Pictures and Video” application.

The SP5m can also record MPEG-4, H.264, or Motion JPEG video at a maximum resolution of 176×144. Given the general quality of the camera this is a novelty at best, suitable primarily for impromptu MMS messaging.

Locking and Unlocking

The SP5m under review is unlocked in the usual GSM sense, meaning that it will accept a SIM from any provider. But, as I found out only hours after I opened the box, there is another kind of lock to be concerned about in the world of Windows Mobile.

One of the first pieces of add-on software I tried to install on the SP5m was the driver for the Brando Smart Keyboard. This is a folding keyboard which uses Bluetooth, but it is not a standard HID device and requires a driver to be installed. (The SP5m apparently supports Bluetooth HID keyboards without a driver, but I don’t have one to test it with.) After downloading the most current driver and copying the .cab file to the phone, it refused to install because the driver did not have the proper digital signature.

Windows Mobile’s security architecture includes a variety of application locks which are unrelated to the usual sort of “unlocking” we usually associate with phones. As I was soon to find out, the SP5m ships with some of these locks turned on by default, preventing you from installing unsigned applications or changing certain registry entries and files.

Even if you never try to install unsigned software, there is a good reason to unlock the SP5m, and that is to change the mapping of the Internet Explorer key. In its default configuration, it is hardcoded to go to the i-mate home page every time it is pressed, even if Internet Explorer was already open and showing another page. This is highly annoying, but if you have to pay for your wireless data usage it can also be expensive, since accidentally touching that button will cause the phone to connect to GPRS/EDGE and download a rather large and graphic-laden page unless you are very quick to bang on the END button to stop it. Luckily, the extra buttons are mapped to shortcuts that you can edit… if the phone is fully unlocked.

The procedure for removing the application lock is not hard, and you can find instructions on the web quite easily. But I wish it wasn’t necessary in the first place. If you’re buying a device at full price from a neutral vendor (and that’s the only way to get an SP5m, in the USA at least) you should be able to run any software you like on it.

Customization

One of the advantages of a smart phone is that, in most cases, they can be customized extensively with not only ringtones and color themes, but applications and system tweaks. That is definitely true of the SP5m, but it also displays some odd choices of what parts of the system are customizable and what parts are not. (This is probably Microsoft’s doing, not i-mate’s.)

For example, the order of icons in the application launcher cannot be directly changed. The first ten or eleven of them are in a standard order, and the rest are in alphabetical order. By comparison, on Series 60 phones you can create folders and rearrange icons to put your favorite programs where you want them. On a Windows smartphone, this requires editing the registry.

Likewise, you can’t change the ActiveSync name of the phone. If it decides to call itself “WM_JoeUser_1” you’re stuck with it unless you break out the registry editor again. A minor issue, to be sure, but some of us are picky about what our toys are called.

On the other hand, Windows Mobile has a very flexible system for making custom themes which goes beyond simple color changes and wallpaper, so visibly personalizing the SP5m is easy.

Conclusion

I will admit that I am probably not the target customer for a device like the i-mate SP5m, since I use Macintosh on the desktop and carry a Palm PDA. But for the larger market of Windows users, a phone that syncs to Outlook and Windows Media Player is probably quite handy. It’s hard to recommend the SP5m over any other current Windows Mobile smartphone, since nearly all of them are variations of the same design, and the choice is likely to come down to bundled features and carrier support. Still, I like the SP5m and am using it as my primary phone.

The biggest downside to the SP5m is, in my opinion, the oddly restrictive application locking that prevents essential customizations like reorganizing the menus and remapping the hardware buttons. If I hadn’t found out how to unlock it, I probably would have very quickly smashed it in frustration after my second or third accidental press of the Internet Explorer button and its mandatory visit to the i-mate home page. With that fixed, there are no other big issues with the SP5m that I can complain about, except perhaps the poor quality of the camera (an issue the SP5m has in common with a lot of camera phones).

The i-mate SP5m is not sold directly by any carrier, though some carriers do offer their own branded version of the HTC Tornado design; it is available through vendors of unlocked GSM phones for a street price of around $500 to $550.
