Photon Freedom Micro LED Flashlight

Gadgeteer Hands On Review by Judie Hughes

September 07, 2005

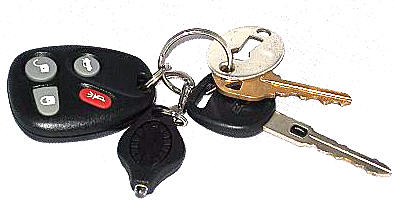

Large flashlights with multiple LEDs, rugged bodies and complex features are wonderful to own - until such time arrives when they are needed but they are not readily accessible. What good is that torch if it is in the owner's glovebox while the owner is stranded in a dark location? The challenge then, is to find a light that is small enough that it can be easily carried, powerful enough that it will be sufficient for general use, and portable enough that it will never be left behind - even when the owner is otherwise caught unprepared. It should seem obvious then, that the answer would be to attach such a small flashlight to something people always carry - their keys.

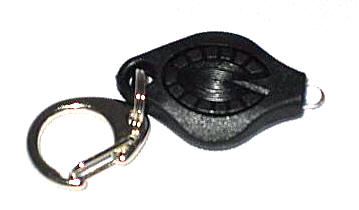

Today I will take a look at the Photon Freedom Micro, a diminutive single LED flashlight that measures approximately 1.5" long x 1" wide x 0.25" thick (not including spring and quick release rings) and which weighs just 0.3 ounces (including both rings).

The light is housed in a black "glass filled polyurethane case", which is described as virtually indestructible on the Photon Light site. Also according to the site, the light has 24K gold contacts for "superior corrosion resistance." The flashlight is water resistant and able to operate in sub-zero temperatures. The included keyring is quick-release, so that it can be quickly added or removed from the user's keyring, zippers with large pulls, or what have you.

The Freedom Micro is available with one of  eight LED colors: red, yellow, orange, green, blue, turquoise, white or purple, as well as ultraviolet and infrared. The color guide listing the advantages and disadvantages of each color may be seen here.

Unlike other "keychain LEDs" I have seen, which have a single use button that must be pressed and held to activate their light, the Freedom Micro uses "smart circuit" technology to enable various types of use from the single button. One quick press and release of the button turns the LED on full brightness...and keeps it on. If the light is too bright, it can be dimmed by pressing and holding until the desired level of brightness is achieved. By the same token, pressing and holding the light's button when the light is not turned on will bring the brightness from the opposite direction - from dimmest to brightest.


Left to right: dimmest and brightest settings

The Freedom Micro has four safety strobe functions - fast, medium, slow and SOS. These are reached by holding down the button until the light has cycled either from brightest to dimmest or vice versa. Once the various levels of brightness have reached the end of their cycle, the LED will then enter the safety strobes and the desired mode can be chosen once it is reached by releasing the button. I admit that it took me several tries before I was able to master this - Grrrrr. That's because I did not read the big notice in red on the Photon Light website which says, "IMPORTANT!: The Photon Freedom Micro is shipped in a "point-of-purchase battery protection" mode. To take it out of this point-of-purchase mode, simply press and hold the button until the light turns off (approx. 15-20 seconds). " Ha - so it was totally my fault...oops!

Once I got it right and the strobes were activated, I found that they would cycle from slow, to medium, to fast, and then to Morse code for a lighted SOS. While in strobe mode, I pressed the button quickly several times, which entered "signaling mode". This is where the Freedom Micro will act as a regular flashlight. What that means is when the button is pressed, the light will shine and when the button is not pressed, the light will turn off. Pressing and holding the button for a couple of seconds while in signaling mode turned the light off completely, causing an exit from signaling mode back into normal operation - pretty nifty!

Included in the packaging were two items that should interest anyone that wants a light that has alternative uses. The first item is the multi-purpose Photon Clip, a $4.95 bonus. This clip accepts the Photon Light, and allows the light to be clipped to anything with a free edge of under 0.2" for hands free operation. For additional positioning options, there are three magnets on the bottom of the clip, so that it can be attached to a steel surface. The clip can swivel 360º horizontally and 180º vertically, allowing it to be positioned as needed for proper beam aiming.

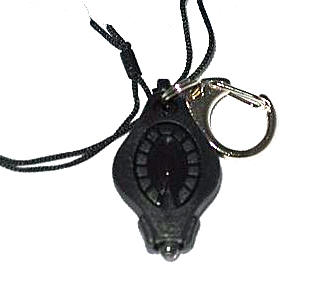

Also included was a lanyard with a similar plastic clip for accepting the light without spring ring. This allows the Freedom Micro to be worn on the neck for easy access and downward visibility while being worn.

Conveniently enough, the Freedom Micro can be placed in either clip with its spring and quick-release rings intact. This is a good thing, because getting the spring ring on and off is a bear, let me tell you!

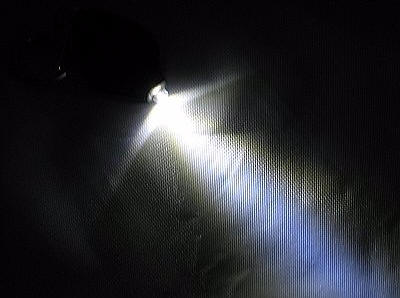

The Freedom Micro has an extremely bright white LED, which according to the Photon site is a full "2X brighter", with "no reduction to battery life." I believe that this picture will show that the single LED of the Freedom Micro was bright enough to light the door at the end of my long dark hallway - over 37 feet away.

If you are looking for a LED keyring flashlight that is way more than just a lowly single beam torch, then you may want to give the Photon Freedom Micro a try; it has earned a permanent place on my keyring.

Product Requirements:
Pair of 2016 Lithium batteries, included
