REVIEW – Now that I am 100% moved into my new home office/studio, I need to make sure that all of my workflow processes are streamlined and that the large amount of video content that I am now generating is triaged in specific places relevant to their use case. I need multiple NAS devices, each with a specific purpose. Since I need multiple, having some large-capacity storage in a small form factor would be perfect. Enter the UGREEN NASync DXP2800.
⬇︎ Jump to summary (pros/cons)
Price: $349.99
Where to buy: UGreen website, Amazon
What is it?
The UGREEN NASync DXP2800 is a compact, premium two-bay Network Attached Storage (NAS) device designed for home and small-office use, featuring advanced hardware and strong connectivity options at a competitive price point.

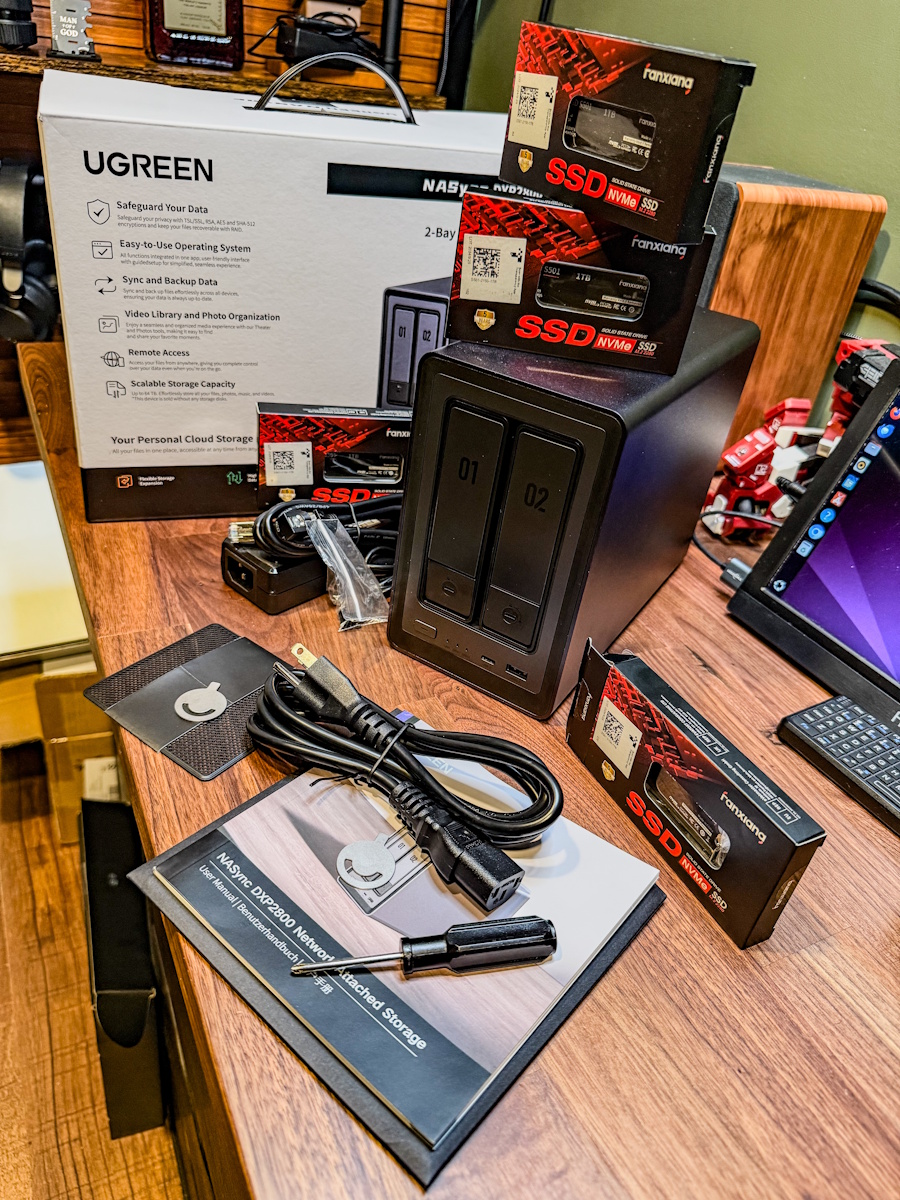

What’s included?
• 1 x NASync DXP2800
• 1 x After-sales Card
• 1 x User Manual
• 2 x Hard Drive Tray Keys
• 1 x Screws & Screwdriver
• 1 x Ethernet Cable (CAT 7)
• 1 x Power Adapter (DC 12V/5A)

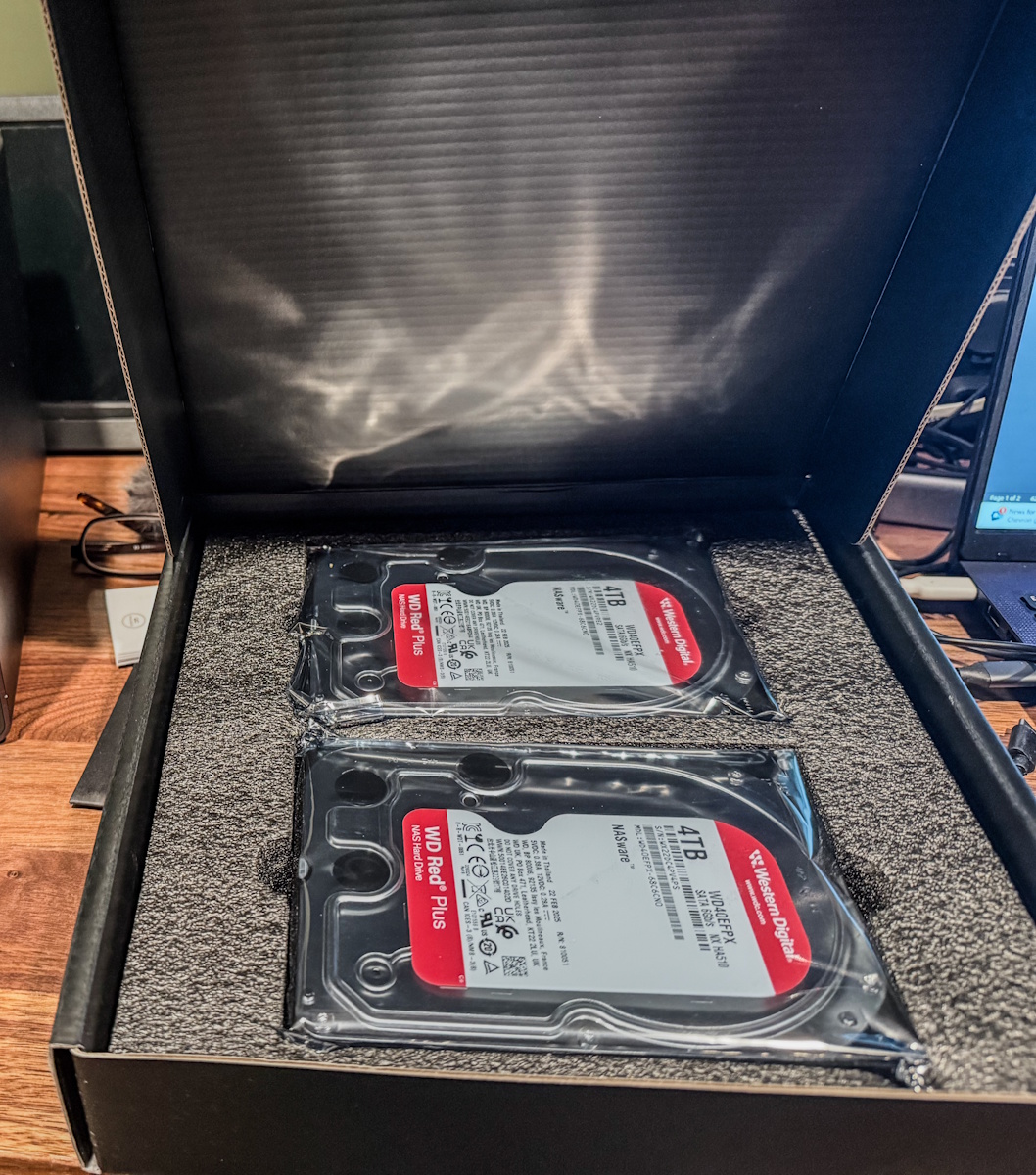

• 2 x 4TB WD Red NAS Drives

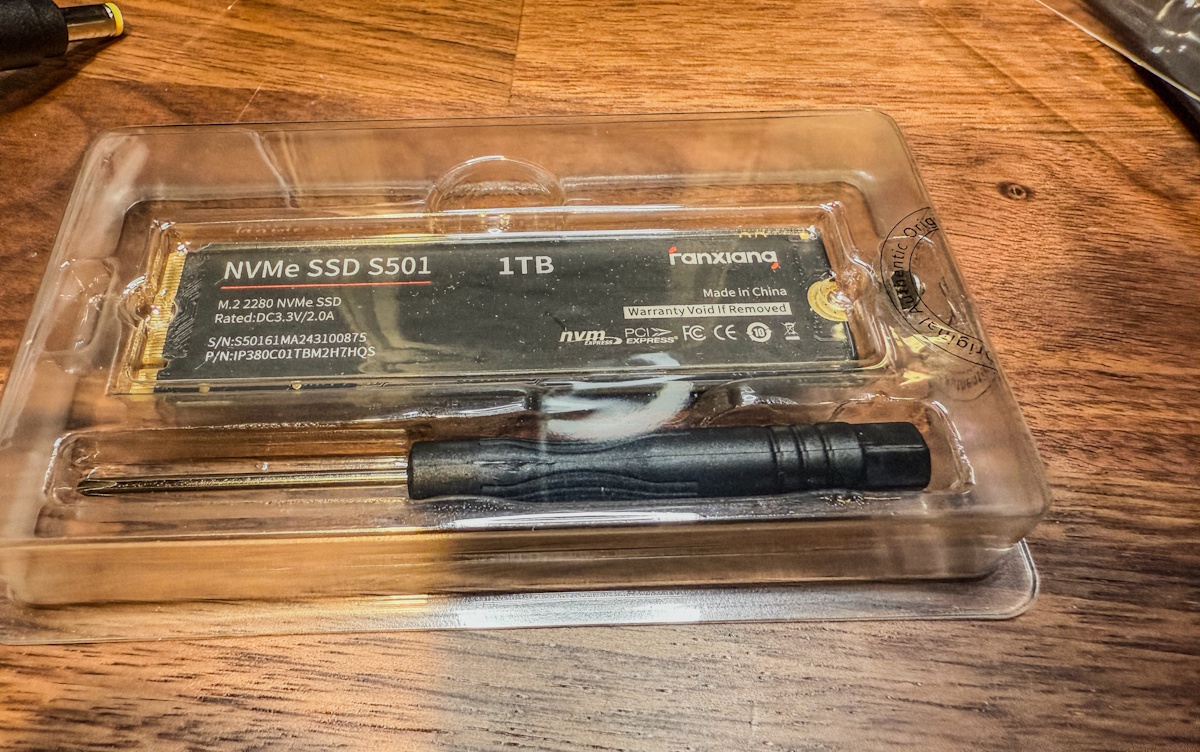

• 4 x 1TB NVME SSD
Tech specs
• Memory (RAM): 8GB DDR5, expandable up to 16GB
• System Disk: 32GB eMMC flash memory
• Drive Bays: 2 SATA (supports both 2.5″ and 3.5″ drives)
• M.2 SSD Slots: 2 slots for cache or extra storage (NVMe-supported, up to 8TB SSD expansion)
• RAID Modes: JBOD, Basic, RAID 0, RAID 1
• Maximum Storage Capacity: Up to 76TB (2x 30TB HDD + 2x 8TB SSD, varies by configuration)
• Operating System: UGOS Pro (Linux-based)
• Network: 1 x RJ45 2.5GbE (10/100/1000/2500 Mbps)
• HDMI Output: Supports 4K display
• USB Ports (Front): 1 x USB-C (10Gb/s), 1 x USB-A (10Gb/s)
• USB Ports (Rear): 1 x USB-A (5Gb/s), 2 x USB-A (480Mb/s, USB 2.0)
• Dimensions: 231 × 109 × 177 mm (9.1″ × 4.3″ × 7.0″)
• Power Consumption: 16.38W (access), 5.24W (hibernation)
Design and features
• 76TB Massive Storage: Backup everything + auto photo albums & home cinema.
• Spend Less, Store More: One-time cost, no fees. Better value & security vs. cloud.
• Supports 3rd-Party Drives: UGREEN NASync is widely compatible with third-party hard drives, including those from Western Digital,    Seagate, Toshiba, and more.
• Easy Anywhere Access: Simple setup & sharing across all devices & platforms.
• AI Photo Magic: Auto-sort by faces, places, things. Instantly remove duplicates.
• Powerful Private Cloud: Equipped with a 12th Gen Intel® N100 processor and a 2.5GbE network port, this NAS can run multiple apps,   1GB transfer in ~3s.
• Total Data Control: Advanced software protects your files & privacy.
• 2-Year Warranty: Enjoy 2 years of protection with UGREEN.
• Note: Storage disks sold separately.

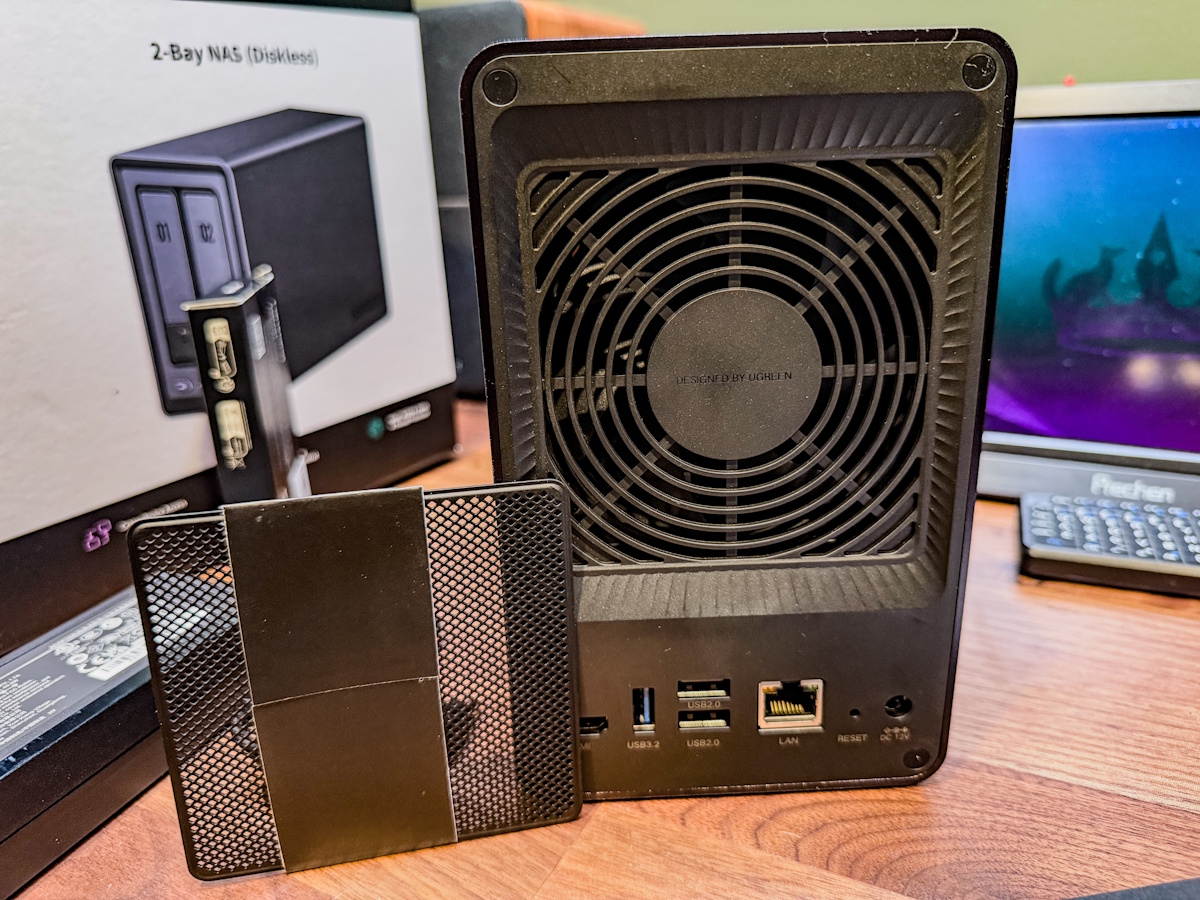

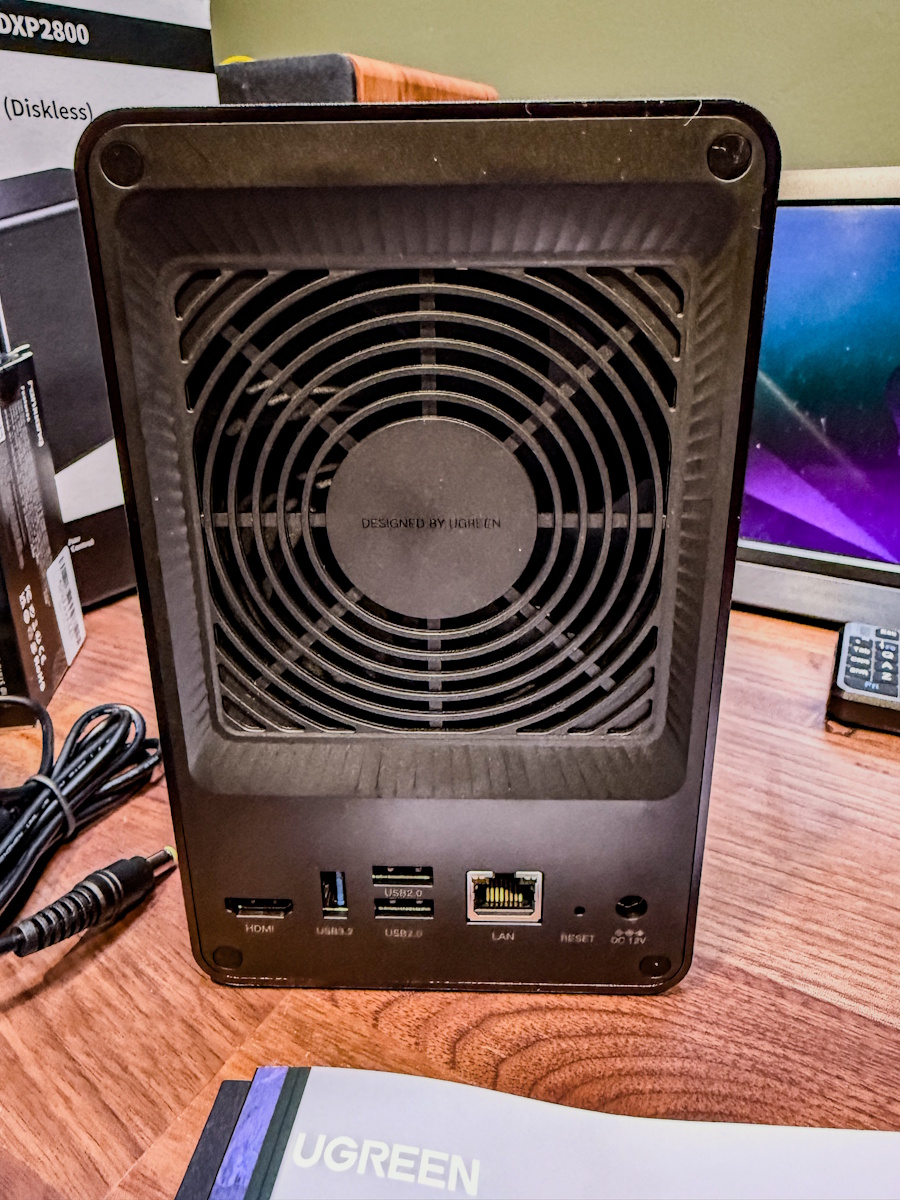

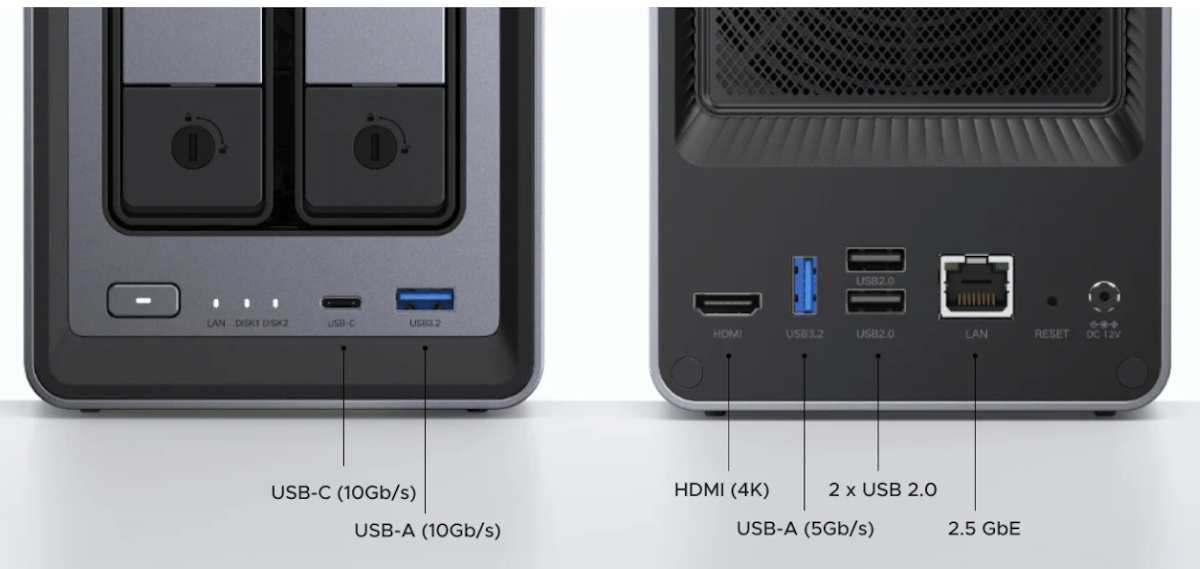

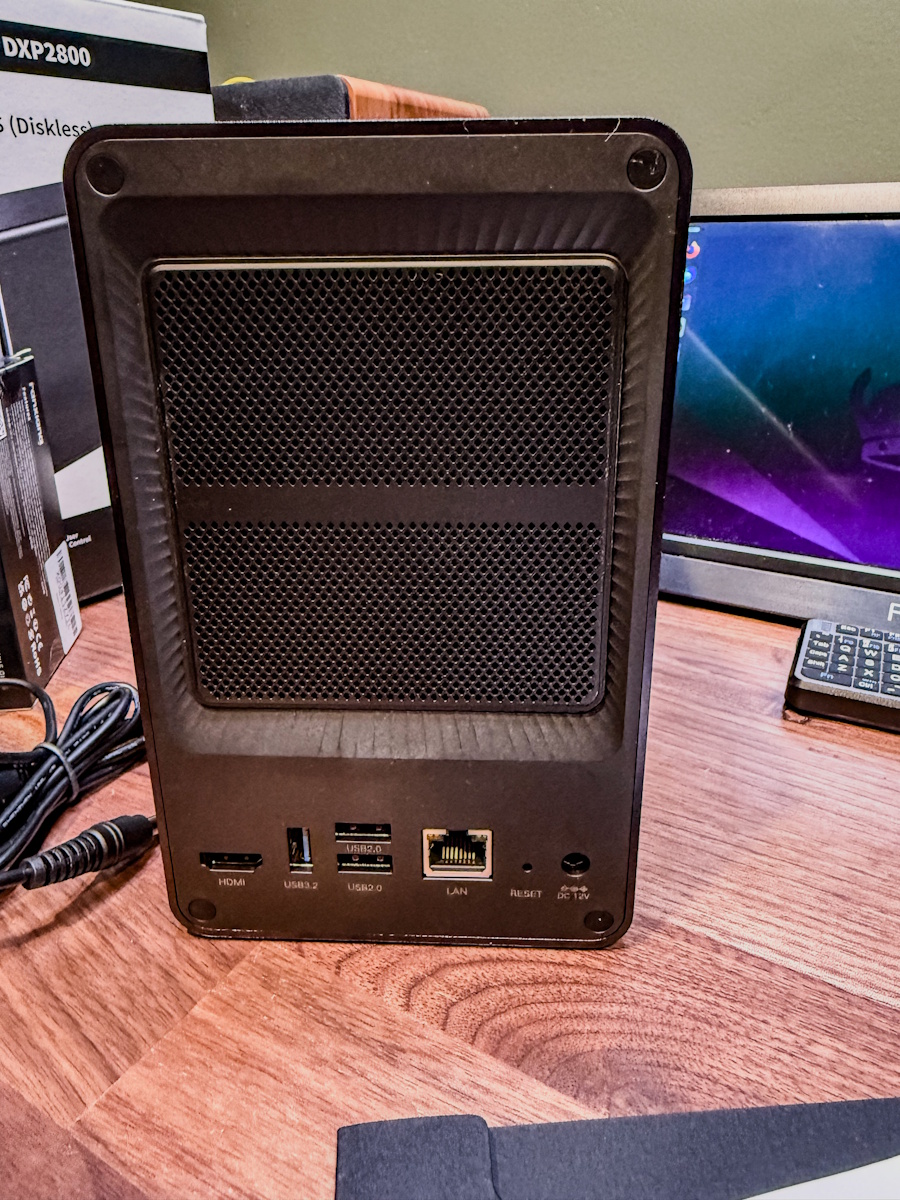

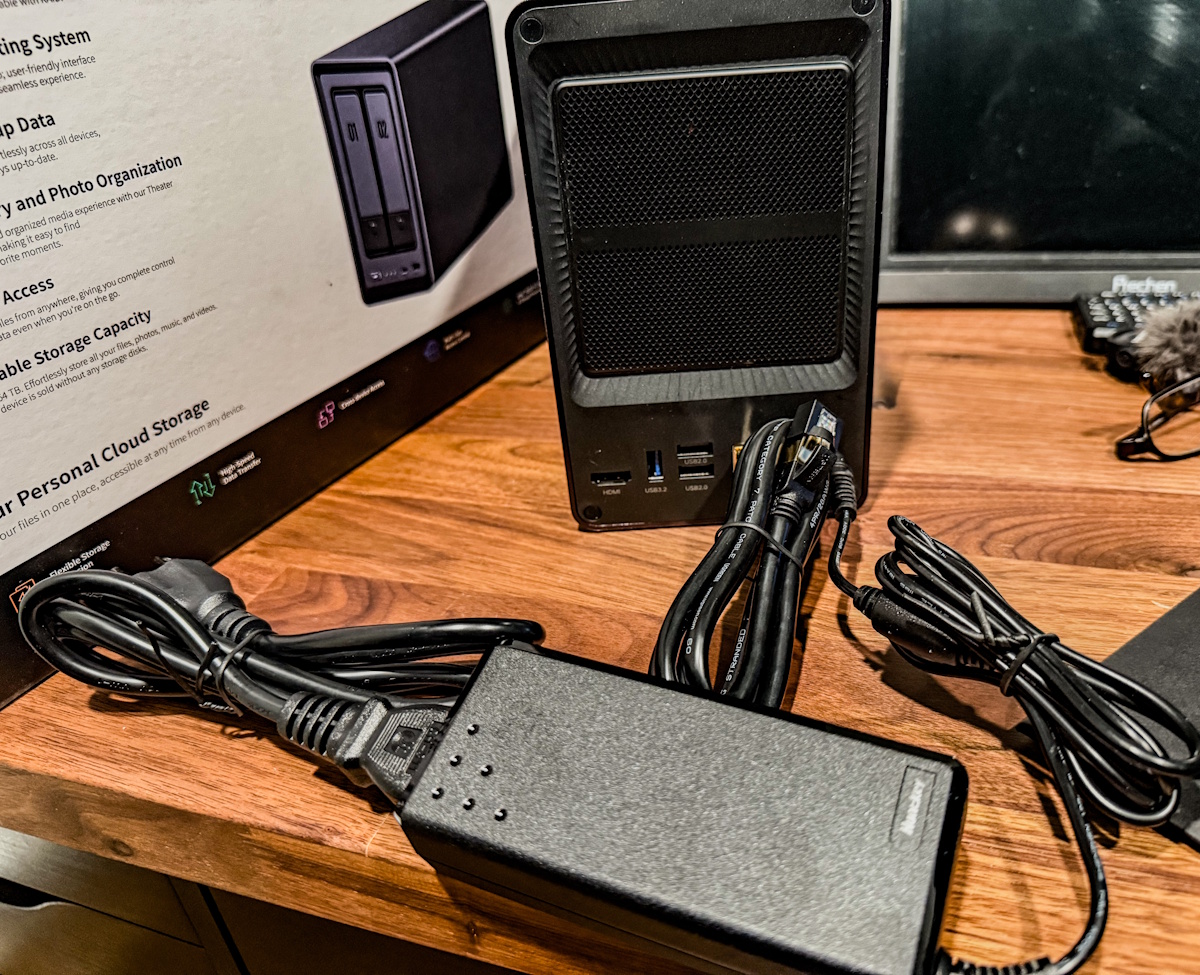

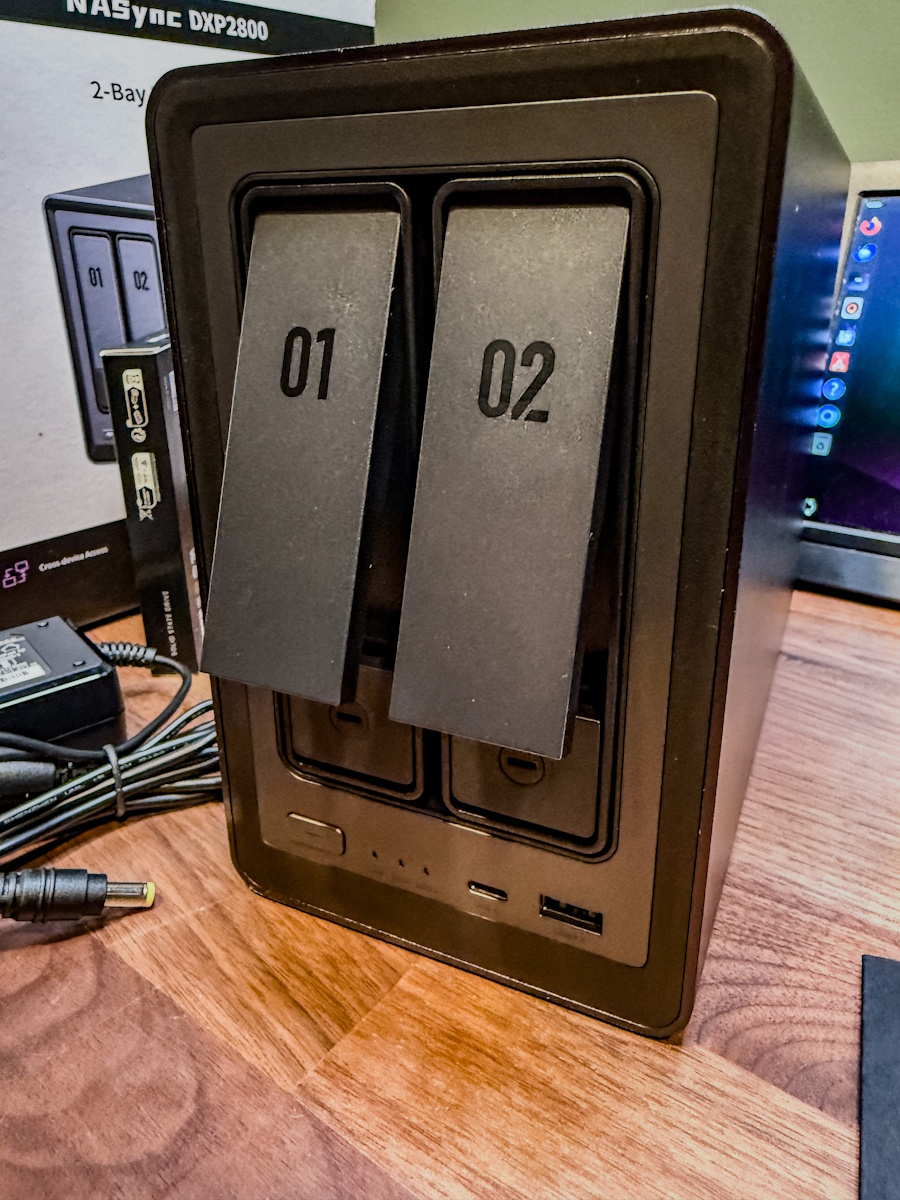

The UGREEN NASync DXP2800 features a sleek design housed in a compact aluminum shell. It measures approximately 9.1 × 4.3 × 7.0 inches. The device includes two front-access 3.5-inch SATA drive bays with tool-free trays, dual M.2 NVMe slots (for SSD caching or storage expansion), multiple high-speed USB-A and USB-C ports, a 2.5Gb LAN port, and a 4K HDMI output.
Assembly, Installation, Setup

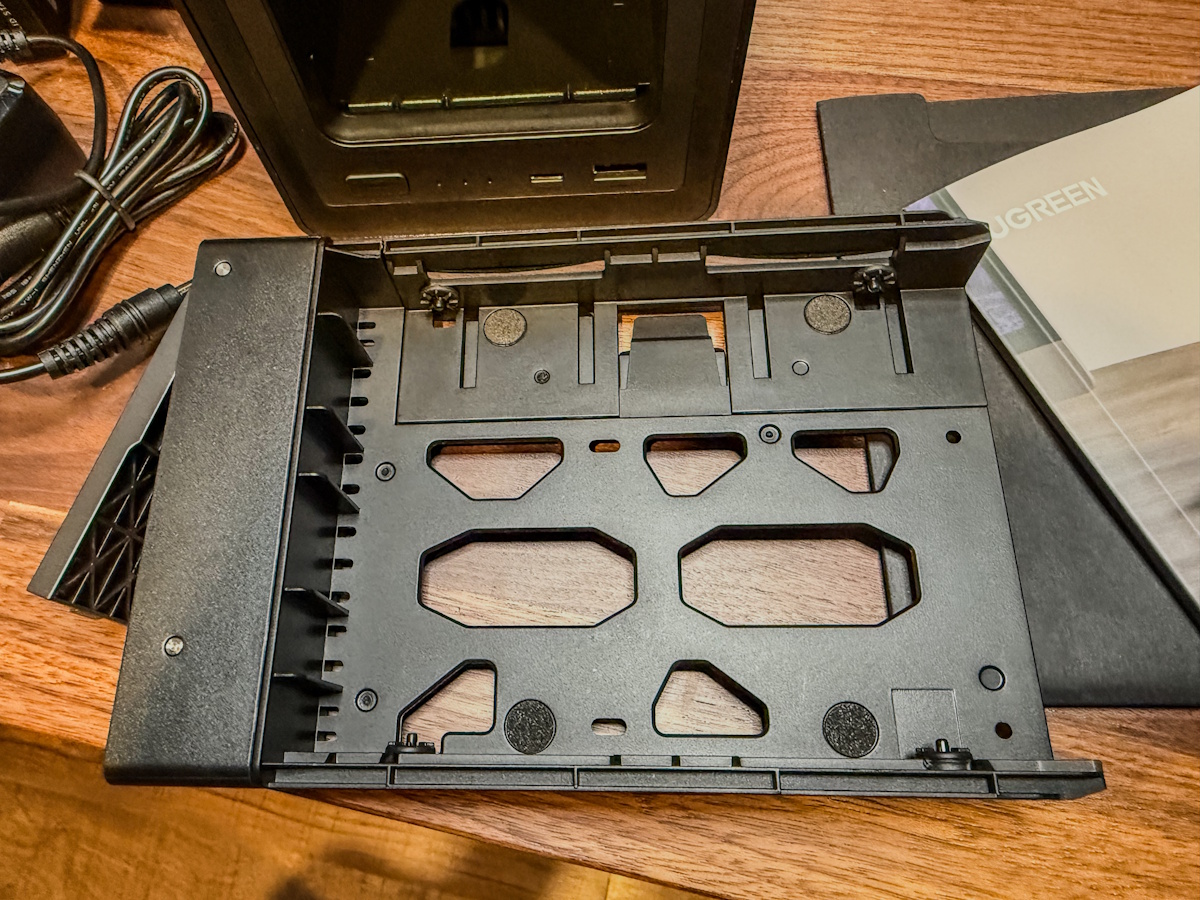

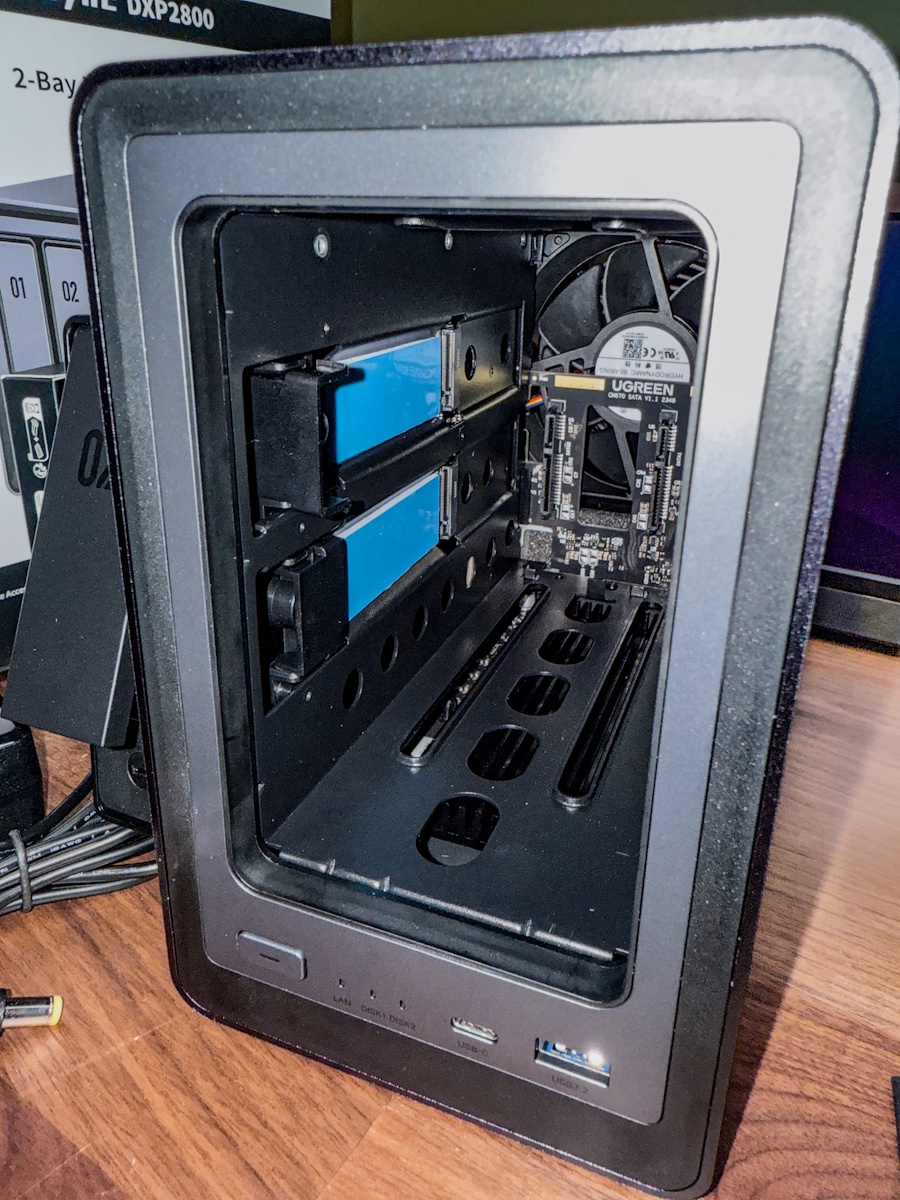

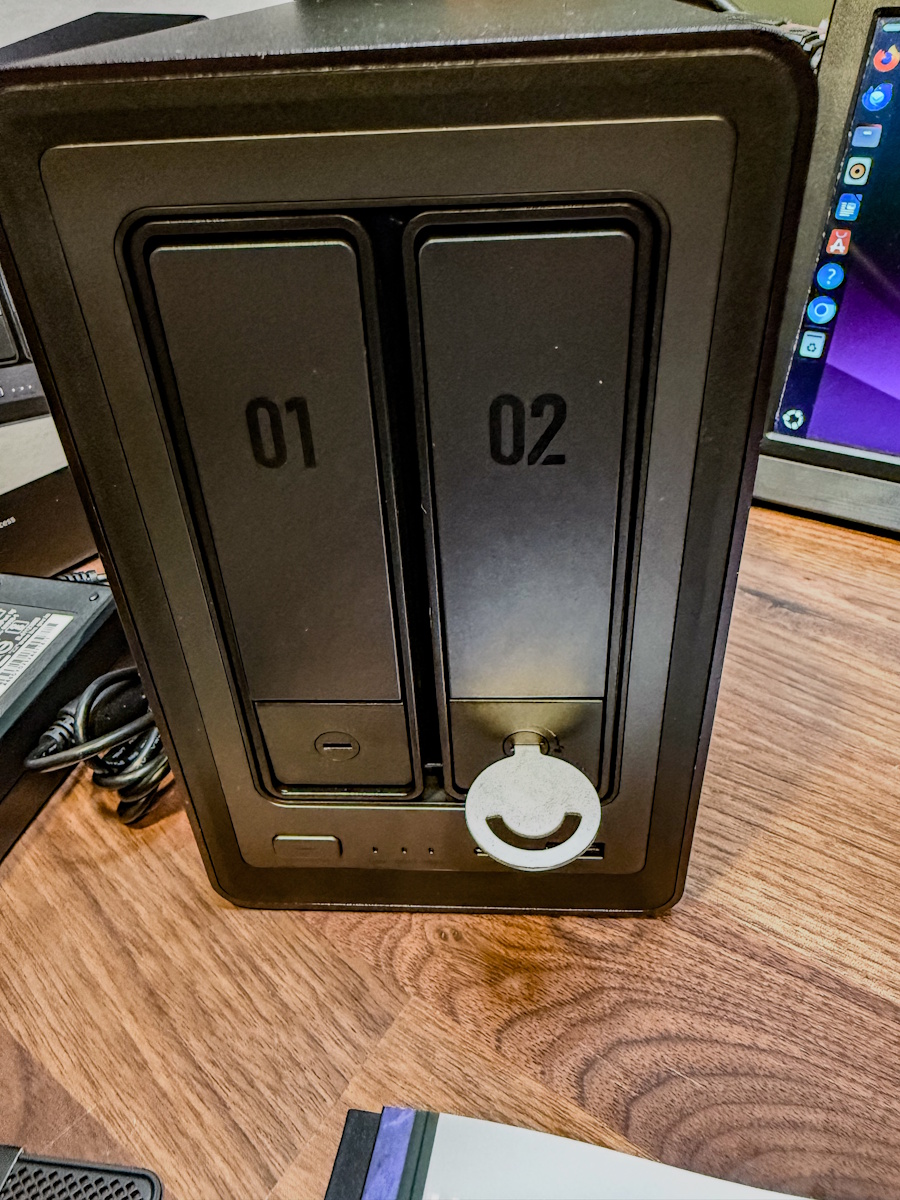

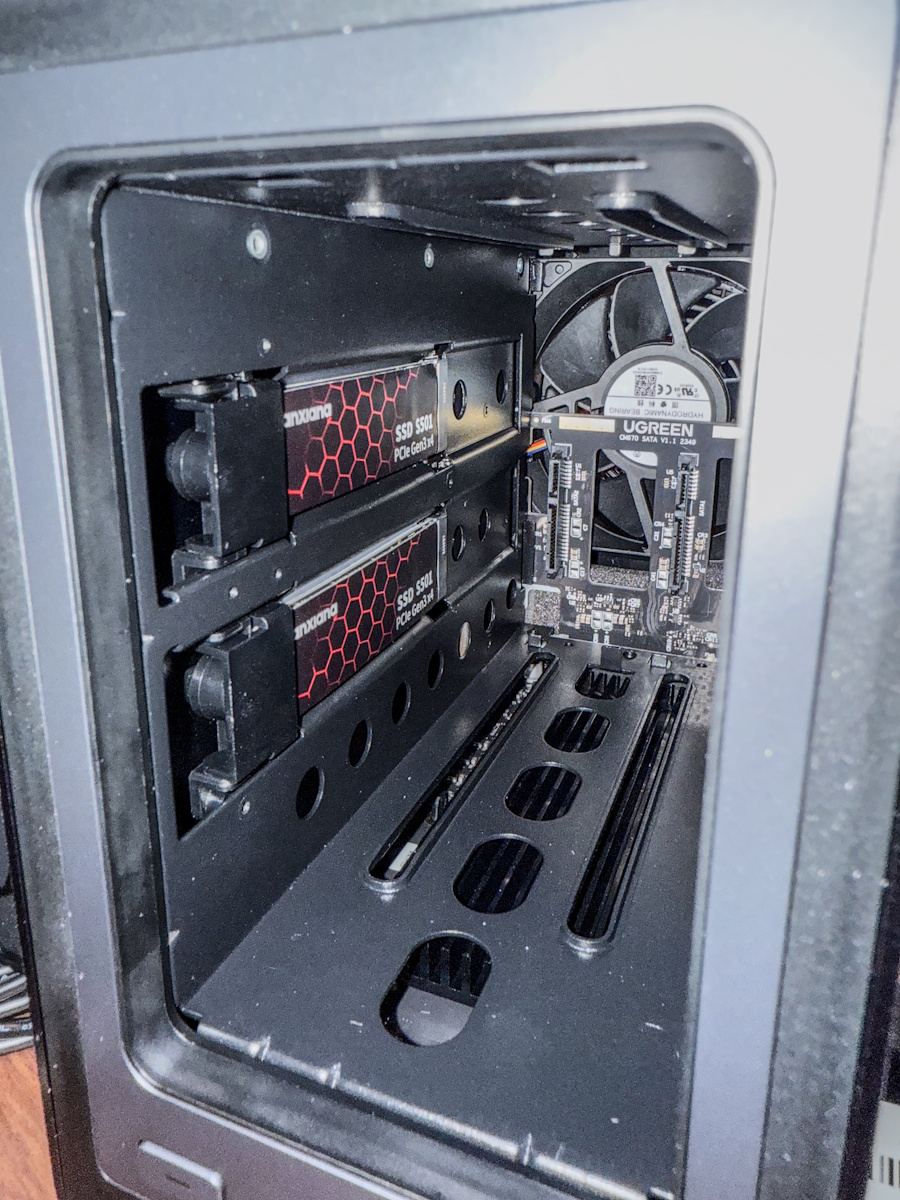

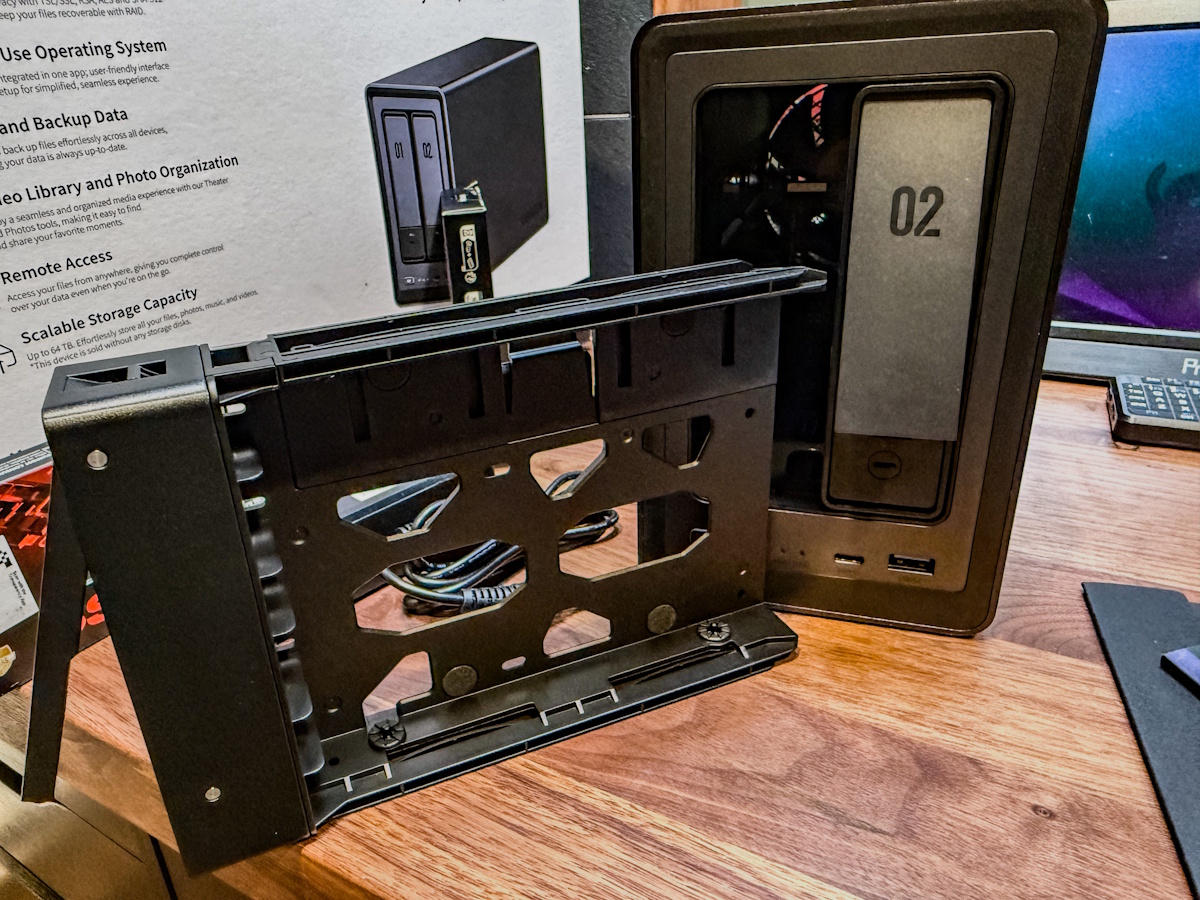

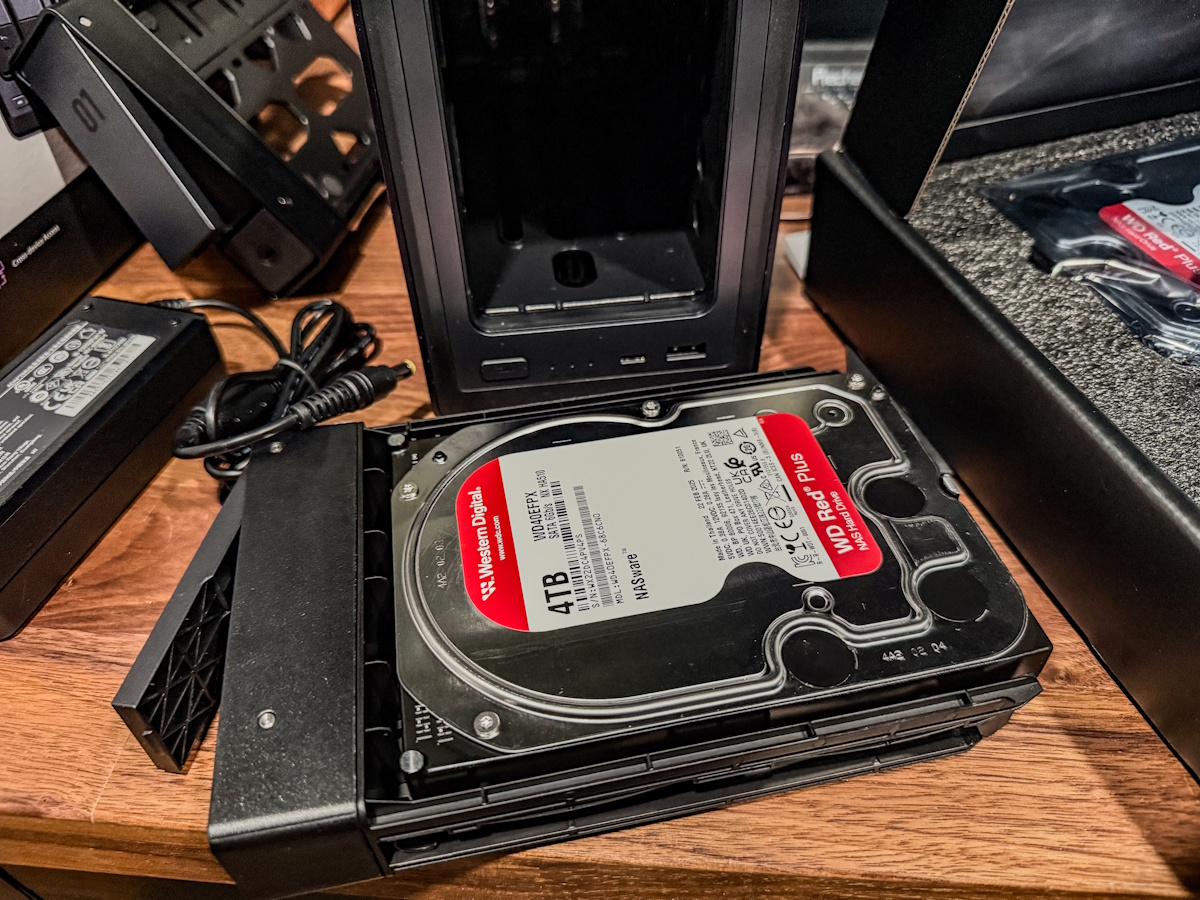

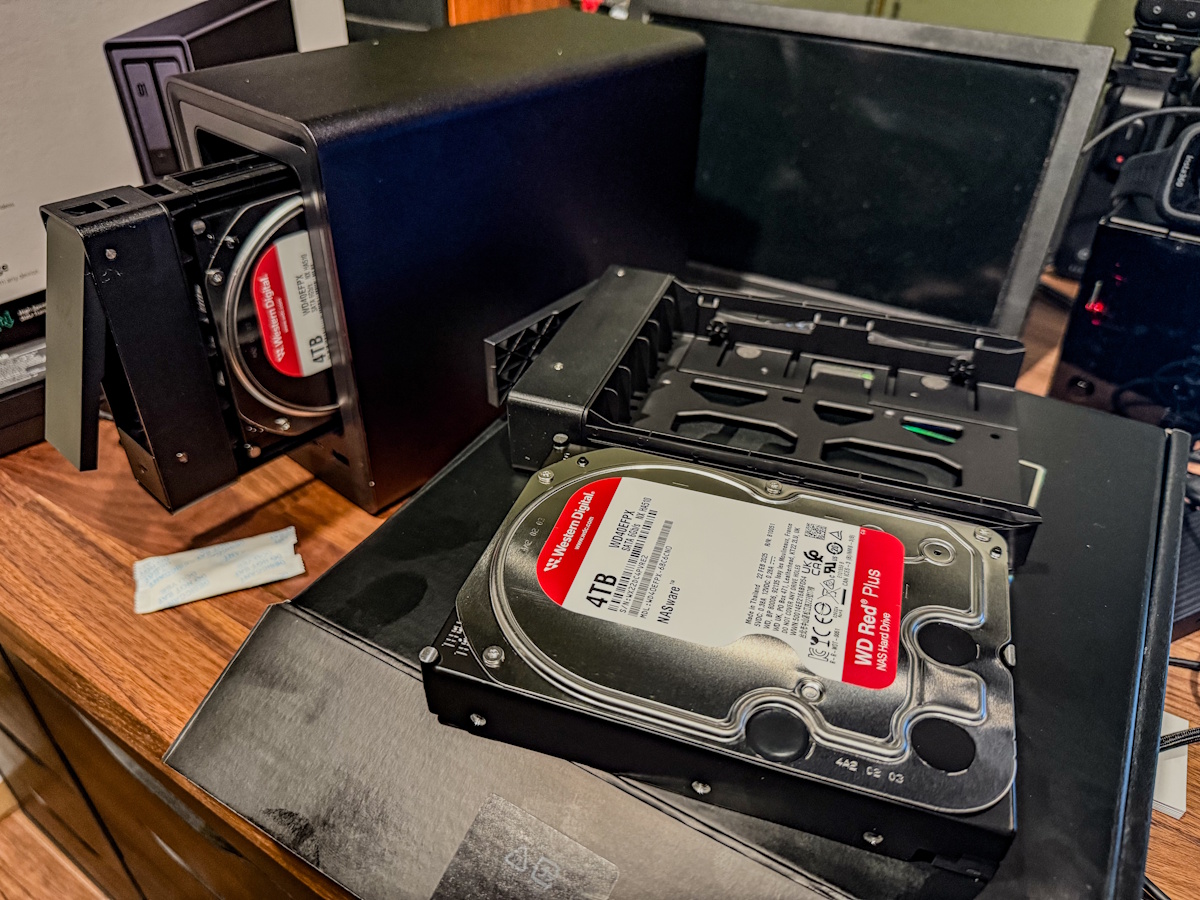

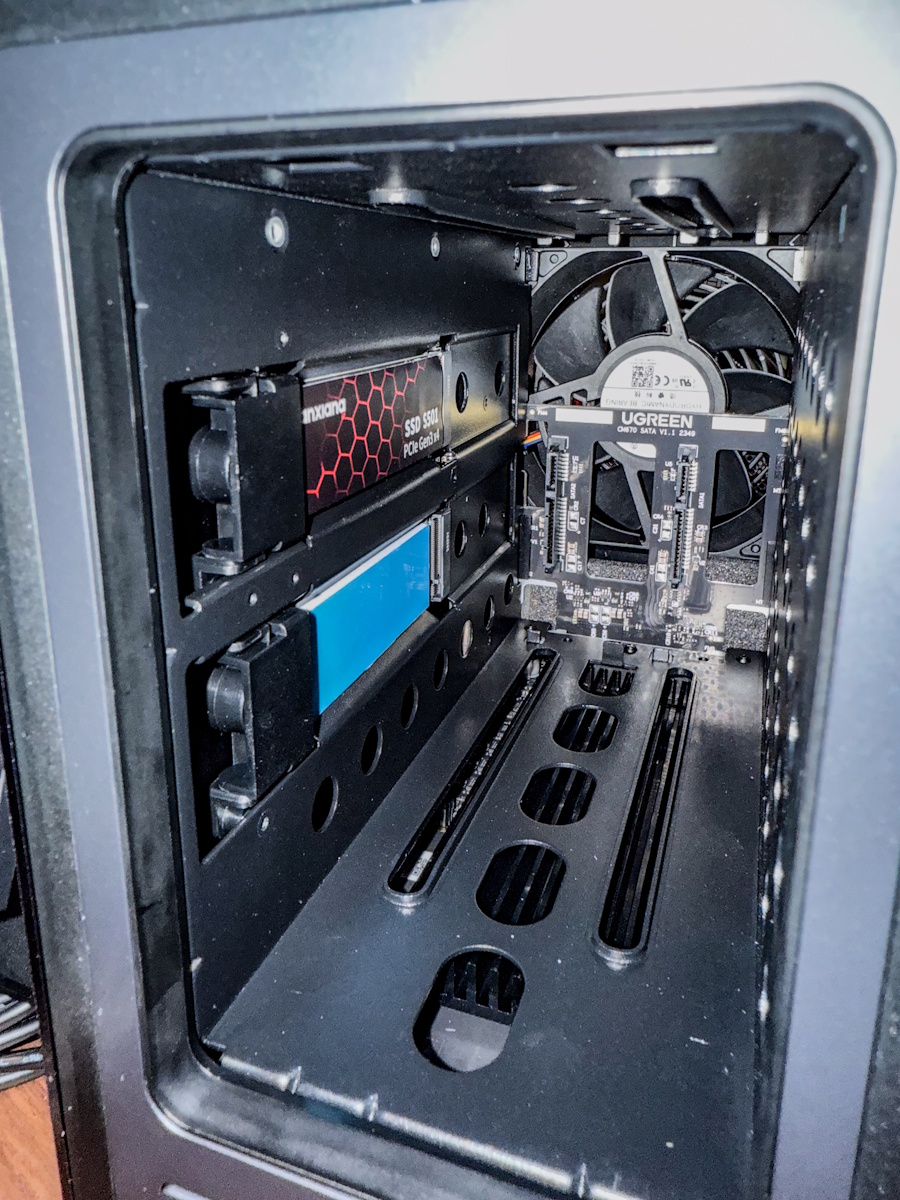

The assembly process for adding storage to the UGREEN NASync DXP2800 is straightforward and user-friendly. The NAS uses a tool-free tray system for its two 3.5-inch SATA hard drives. You simply press the latch to open the drive bay, insert the hard drive into the tray, aligning the mounting pins or screw holes, then slide the tray with the drive back into the bay until it clicks securely into place. To install the M.2 SSDs, carefully insert the M.2 drive at an angle, then press it down to lock and close the hatch. After the drives are installed, connect power and Ethernet, then power on the NAS to proceed with software setup.
(Please note that I have since removed the blue cellophane from the thermal pads on the M.2 memory sticks)

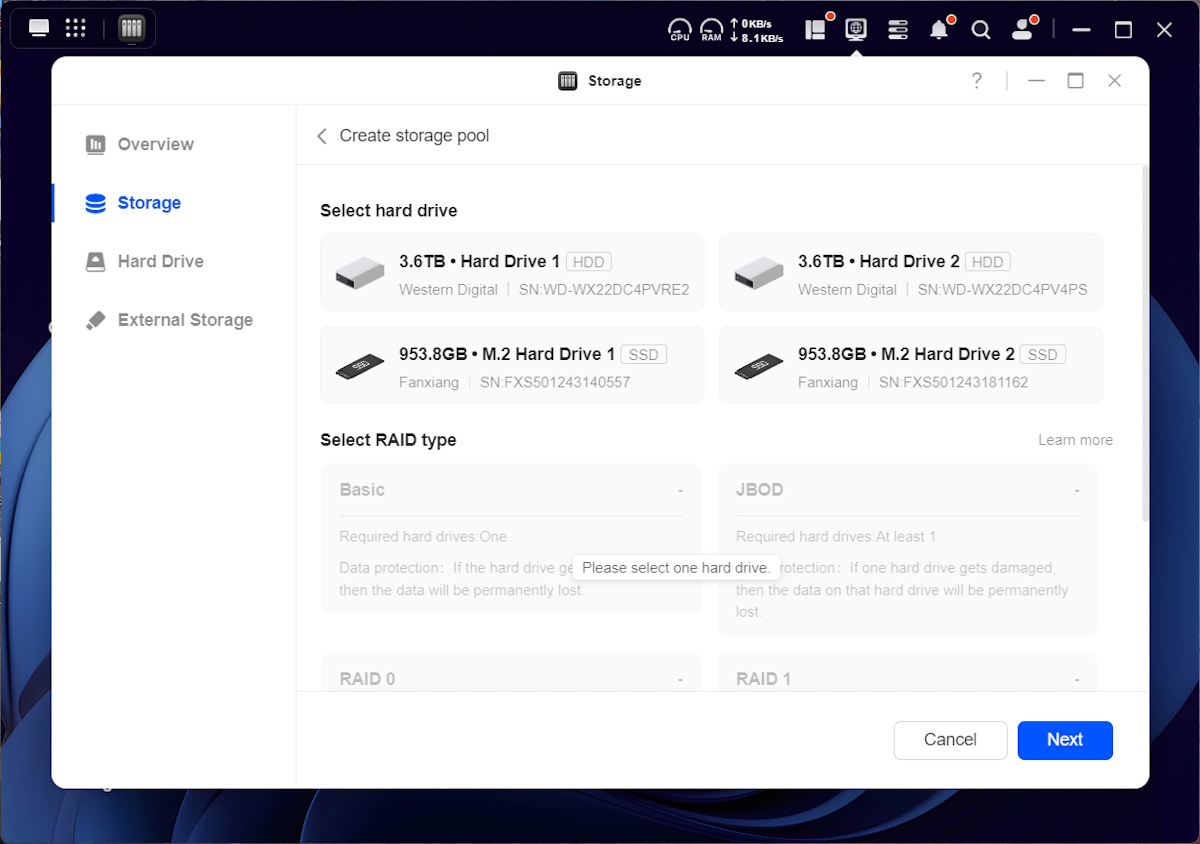

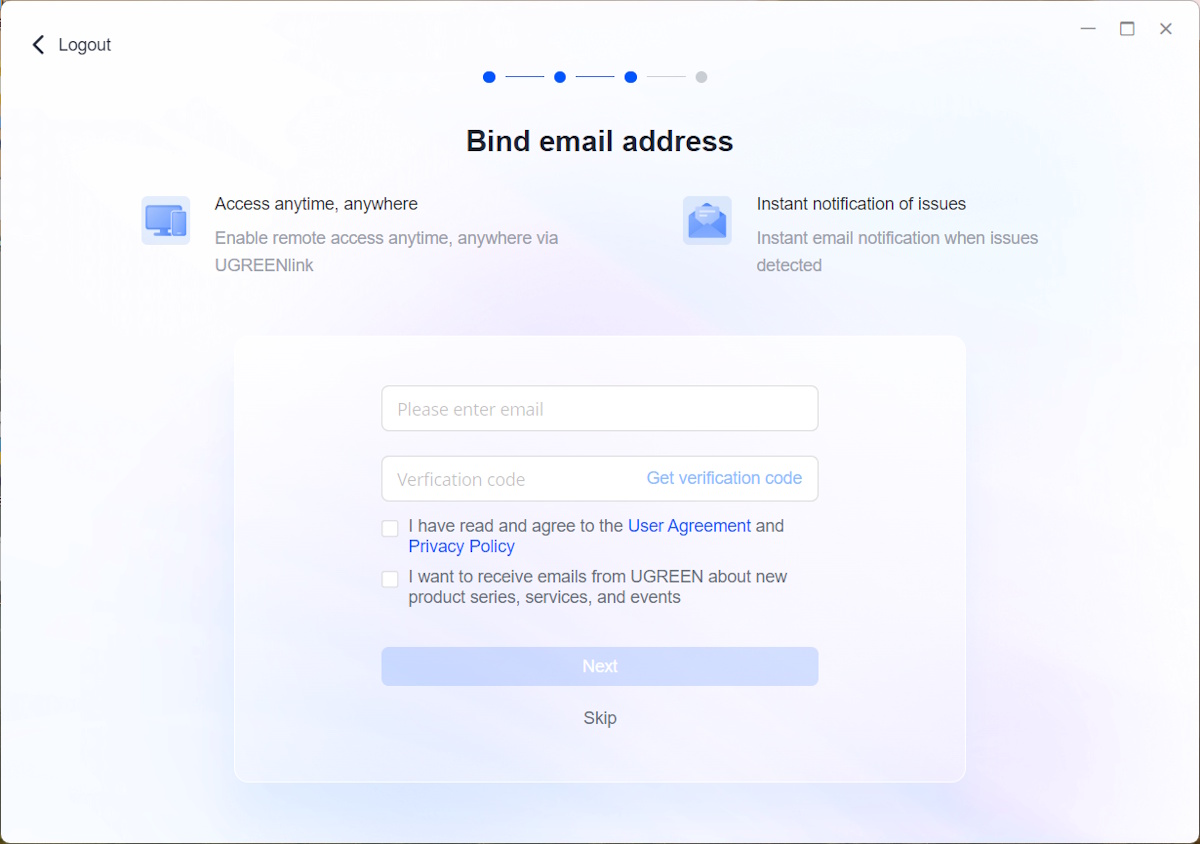

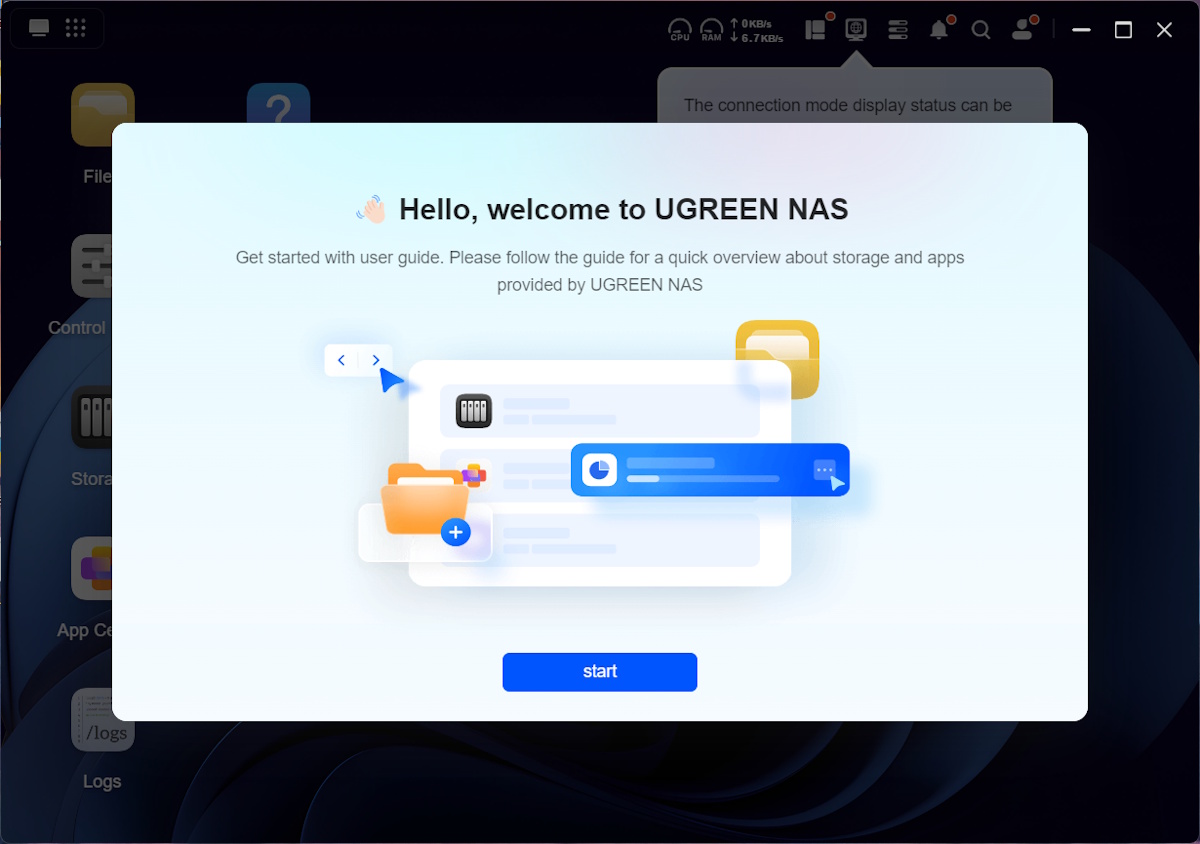

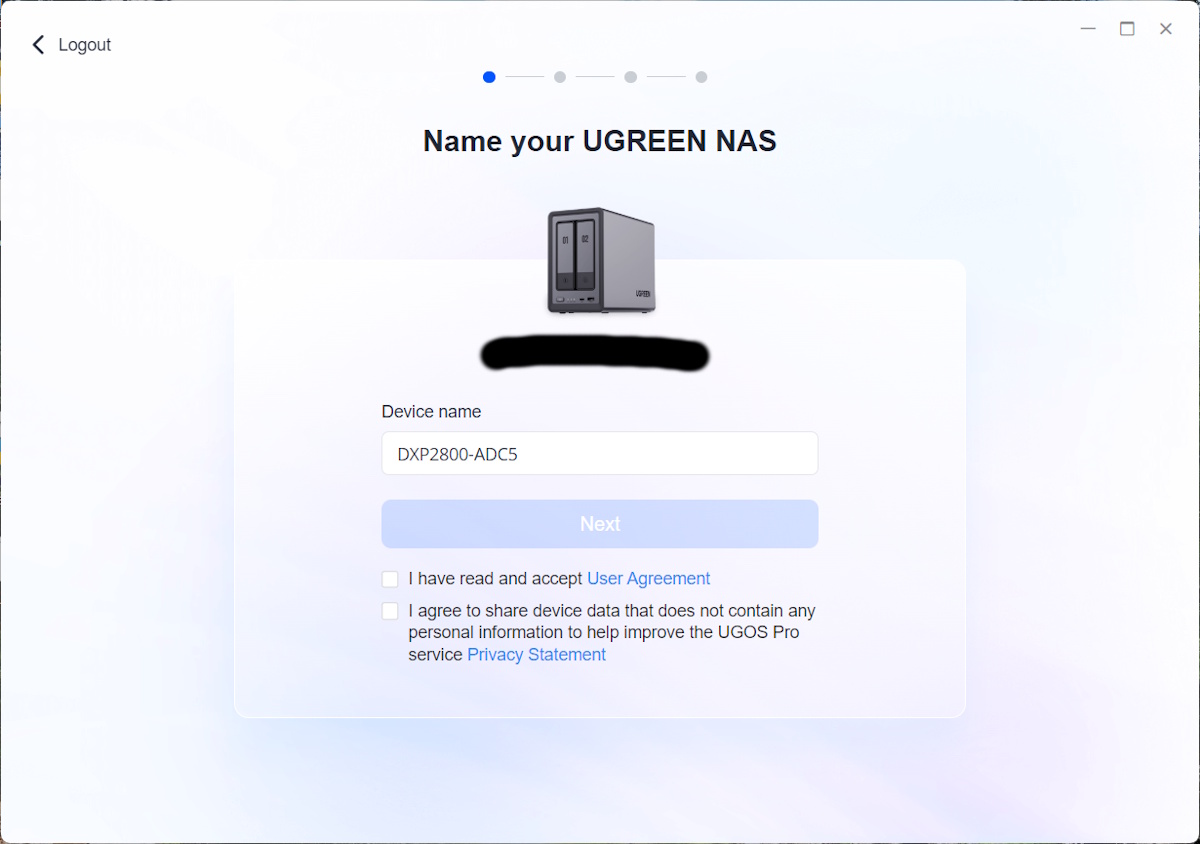

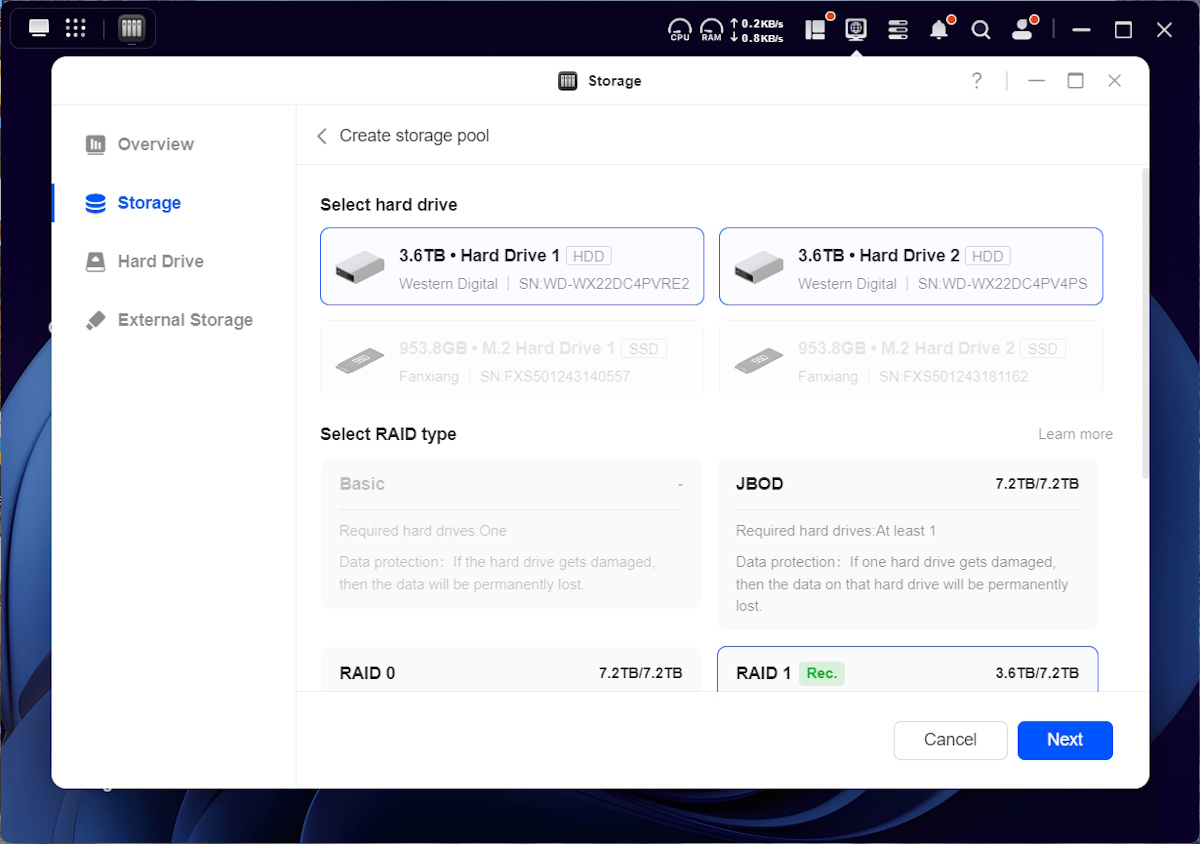

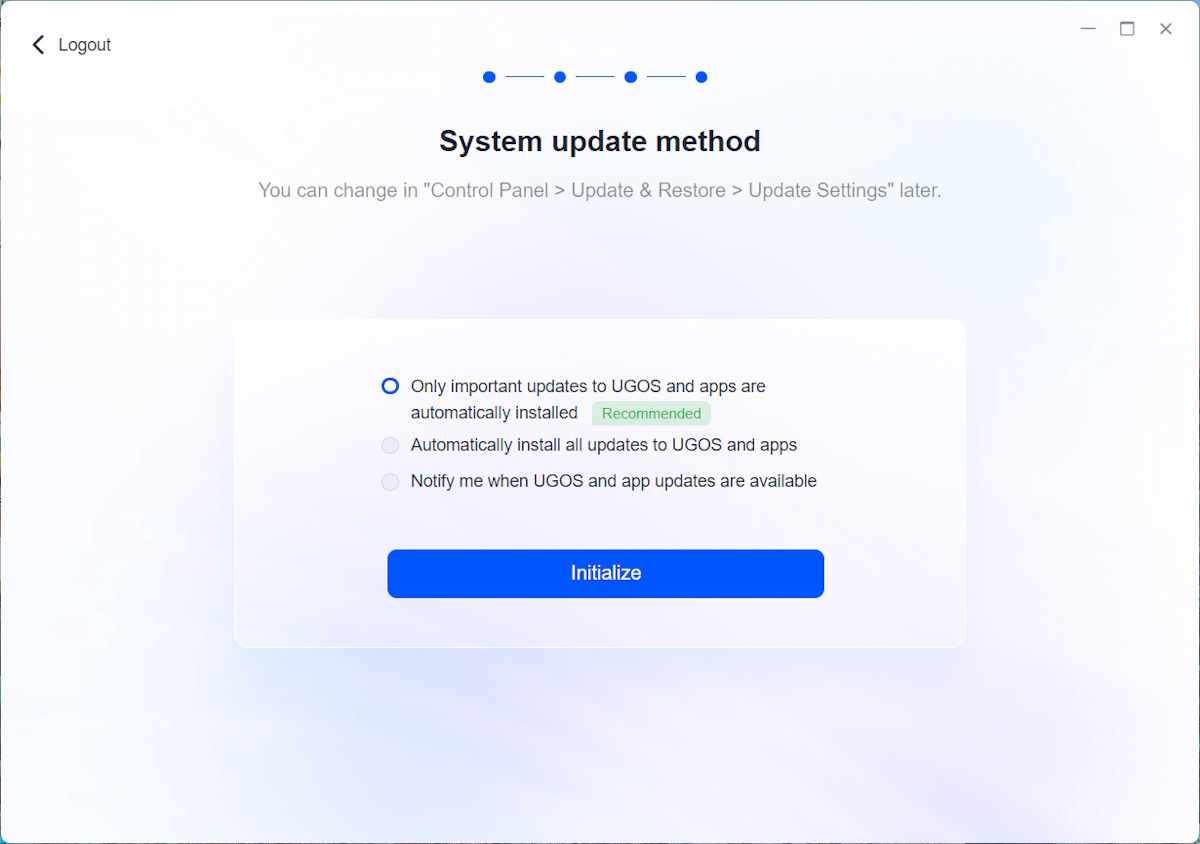

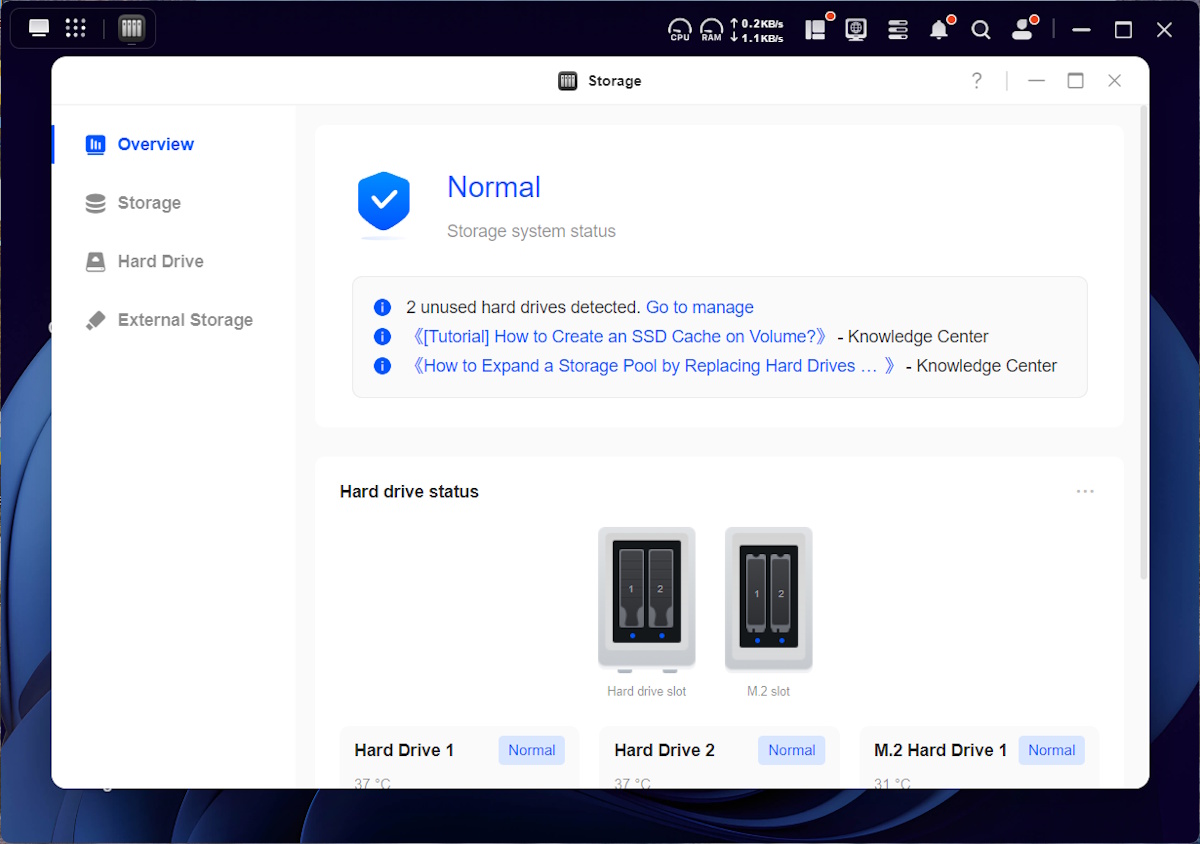

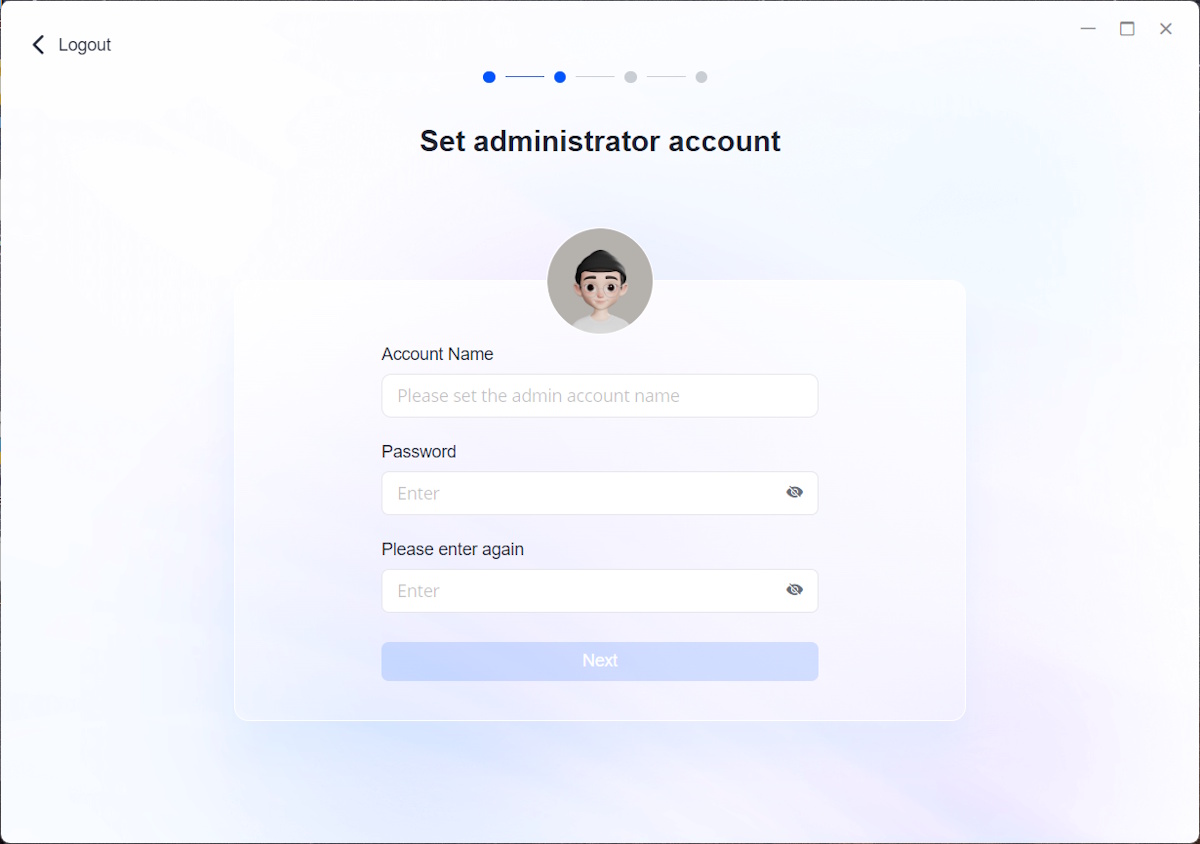

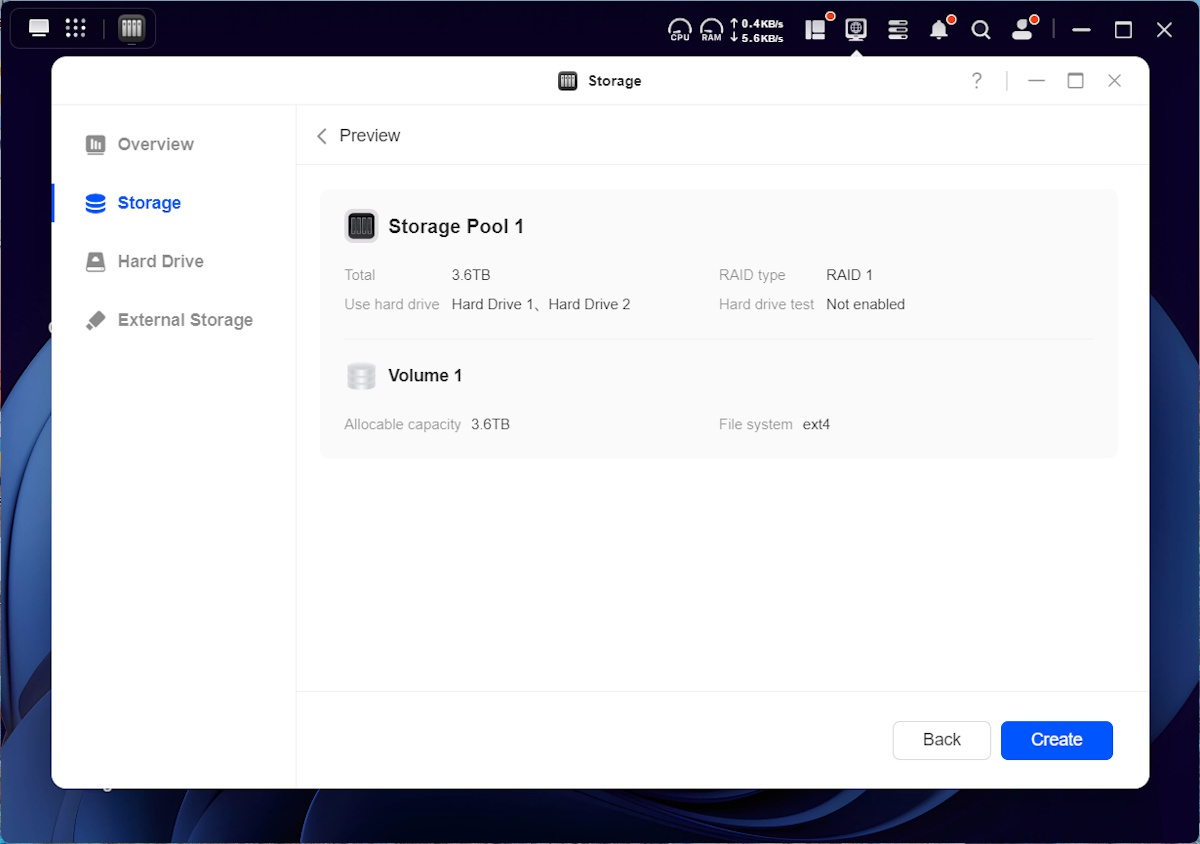

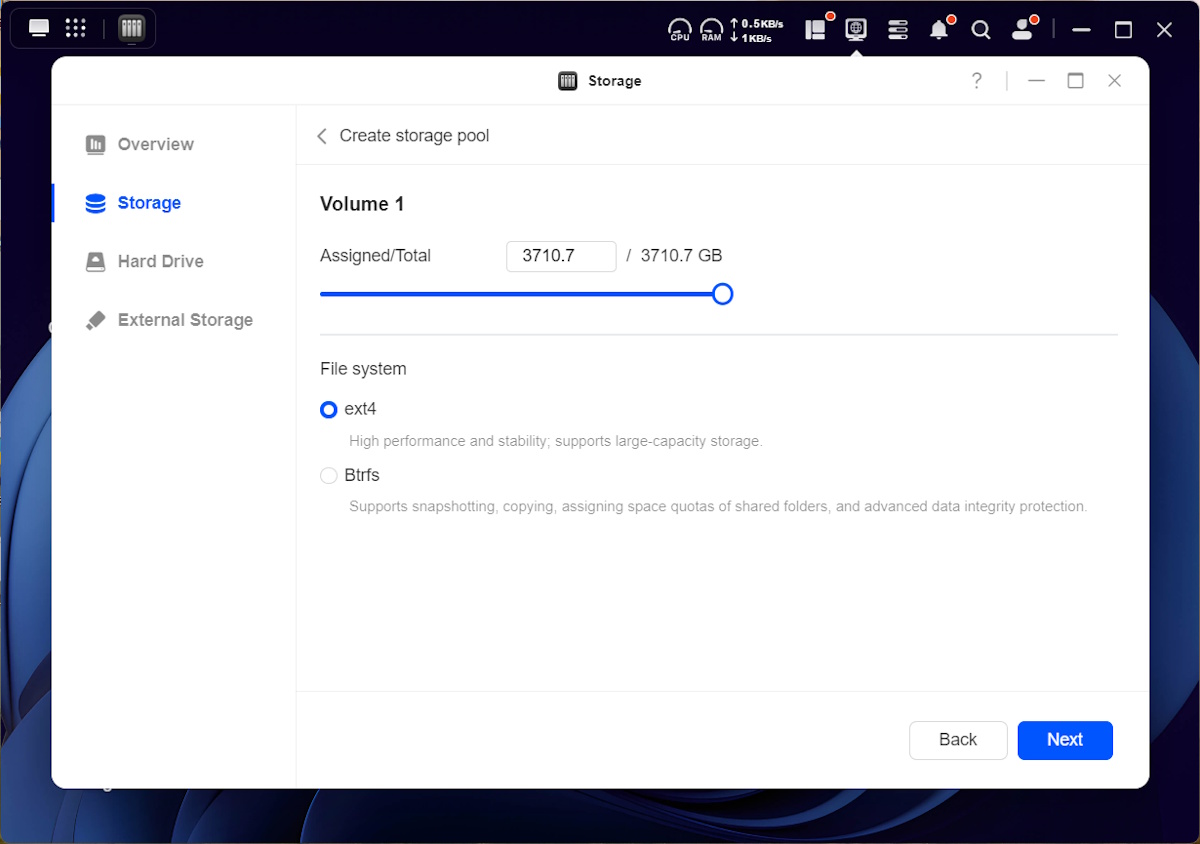

Software setup:
Performance
The UGREEN NASync DXP2800 is well built, much like the other models that I have tested. While it is only a two-bay NAS, it is powerful, and IMO is a good fit for any type of user, and the decision would be based on the use case. The network connectivity is fast, and the companion software makes it versatile and flexible.

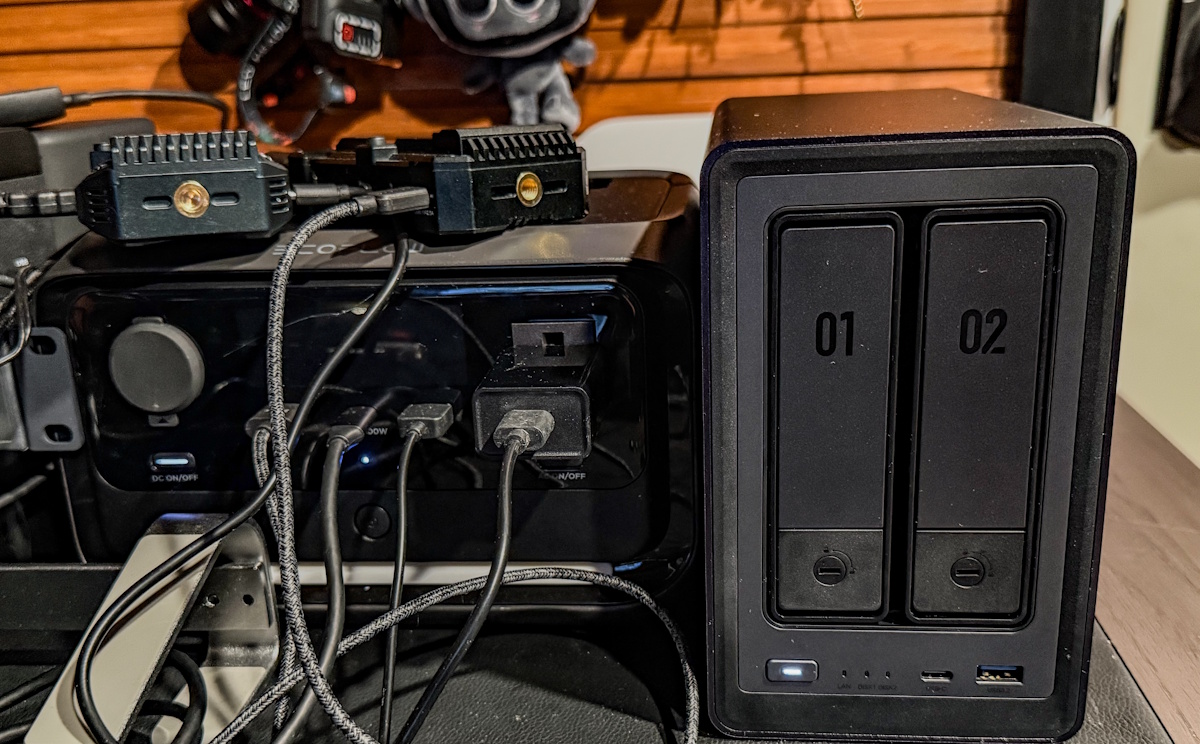

This NAS is powered by a 12th Gen Intel N100 CPU and includes 8GB DDR5 RAM that is expandable to 16GB. The basic power that it comes with is enough to support fast and large file transfers, media streaming, and any virtualization requirements. I love the additional features like the dual M.2 NVMe slots for SSD caching, and the multiple USB ports that include a 10Gbps USB-C port. There is also a 4K HDMI port that, to be honest, I never use. Although the other storage devices and my switches are 10G bandwidth, the 2.5GbE LAN port on the DXP2800 is more than adequate for my use case, which is storing large video files that I record on my BlackMagicDesign HD Studio Plus recorder.
Just like my other UGreen storage devices, this NAS uses UGREEN’s web-based operating system, UGOS Pro, and it is full-featured and just as good, if not better. It easily allows you to manage photos, videos, and music, automate mobile backups, set up VMs, and access a unified web portal for device control. There is also Docker integration that allows you to run services like Plex. UGreen also updates the OS frequently.
The 2.5Gb network connection ensures reliable and efficient file transfers and media streaming, with no interruptions when transferring files of over 100GB each. Mobile app connectivity is seamless.
Overall, IMHO, the UGREEN NASync DXP2800 is one of the most capable and user-friendly NAS solutions for home and small business use. It combines great build quality, fast network performance, and a tool-free setup. It is reliable, and its storage expansion capability up to 76TB is fantastic. Its operation is also silent, so it even works in my studio without impacting the open mics and recordings.
App:

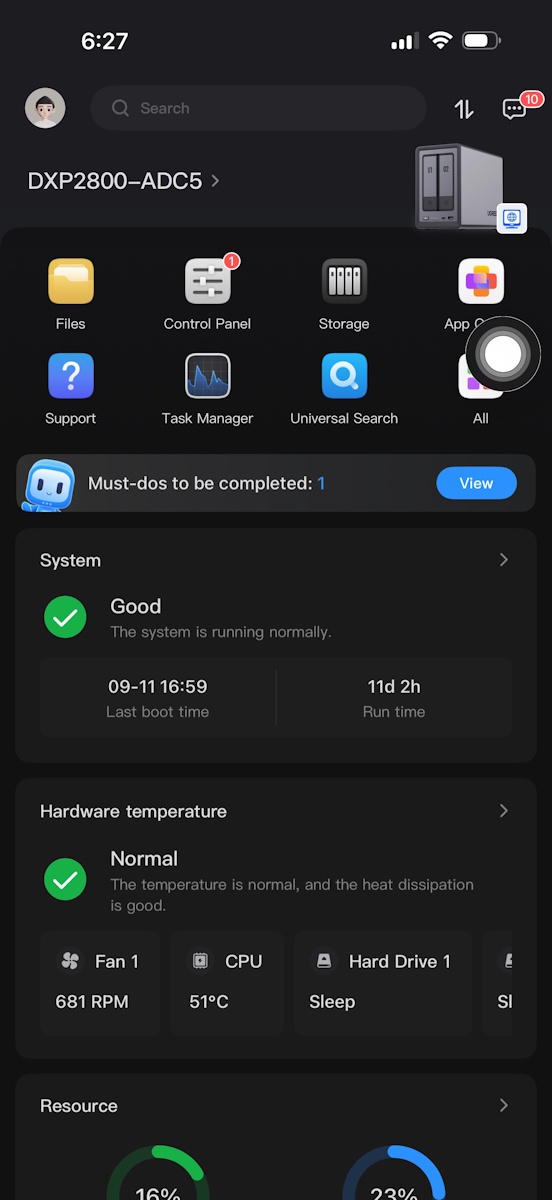

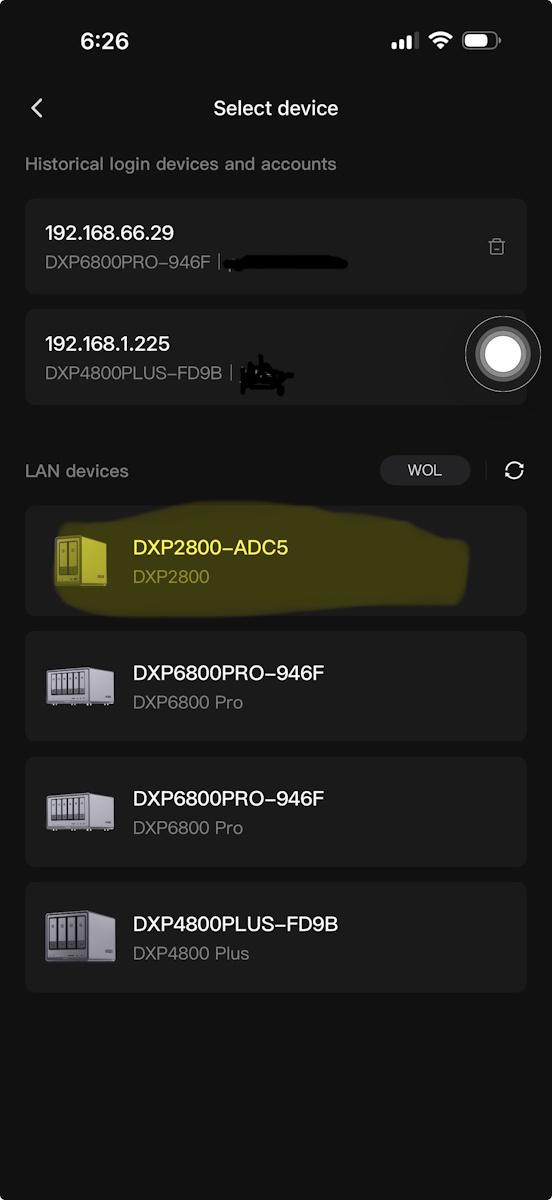

The following are a couple of screenshots from the UGreen mobile app:
Final thoughts
The UGREEN NASync DXP2800 is a great addition to my studio. Its small footprint means that it is unobtrusive, and it fits my use case perfectly. It also provides the UGreen quality that I have come to know and love. Well done.
What I like about the UGREEN NASync DXP2800 NAS
- Great build quality
- Easy and toolless setup
- User-friendly software
- Easy and quick to start using
- Amazing storage size possible
- Quick and reliable
- Convenient add-on ports
What needs to be improved?
- I have no complaints
Price: $349.99
Where to buy: UGreen website, Amazon
Source: UGreen provided a free sample for this review. UGreen did not have a final say on the review and did not preview it before it was published.
