Chigee AIO-6 Max Smart Riding Display review – A graphical dashboard for your bike

REVIEW – Many of my friends and most of my subscribers to my YouTube channel know me for my crazy OOTB DIY projects. While I apply this approach to almost everything, my main passions include eco-friendly devices and bikes, as well as motorcycles and e-motorcycles. Over the past 2 years, I have installed CarPlay devices on just about every e-bike that I own/owned, and I was just about to repurpose my Chigee AIO-5 from my Eahora Electric Motorcycle to my Honda Rebel ABS SE 500 motorcycle when I got this amazing offer to give the Chigee AIO-6 Max Smart Riding Display a try. Here is a snapshot of what Chigee sent, and the story about my experience with it.

⬇︎ Jump to summary (pros/cons)
Price: $460
Where to buy: Chigee website and other versions are available on Amazon

What is it?

The Chigee AIO-6 Max is a Smart Riding Display featuring a 6-inch, 2000-nit ultra-bright display with automotive-grade dual-backlight technology. The device is powered by an A53 dual-core processor and has the Chigee OS installed.

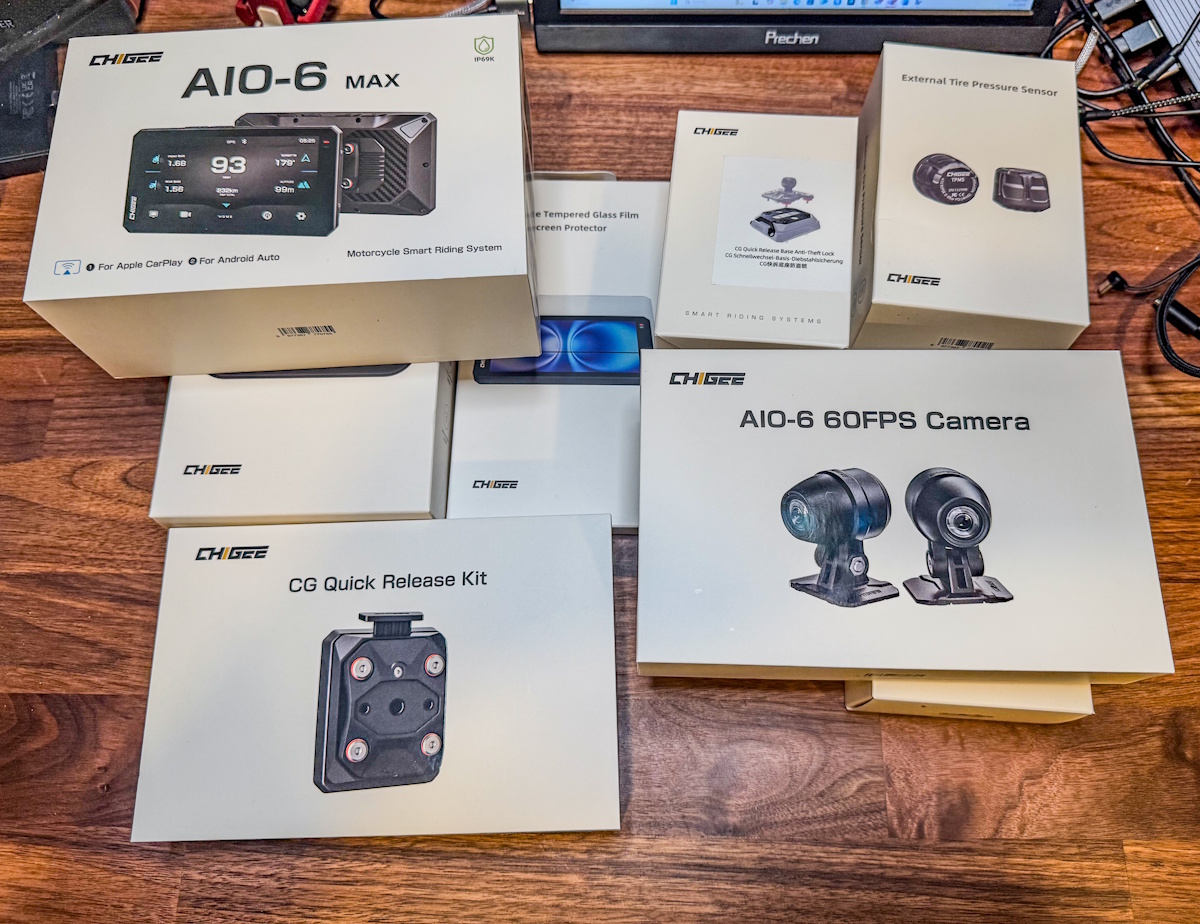

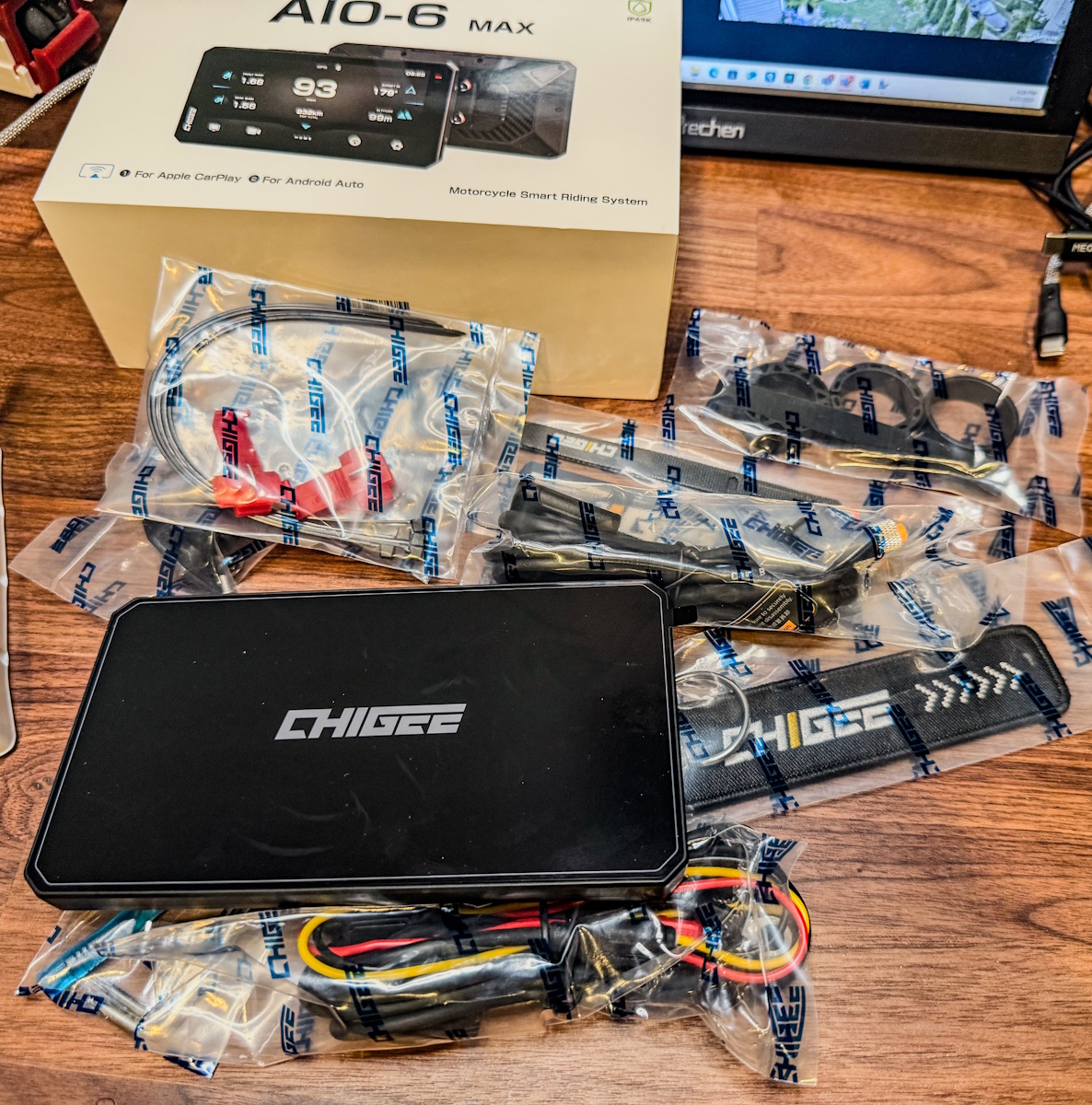

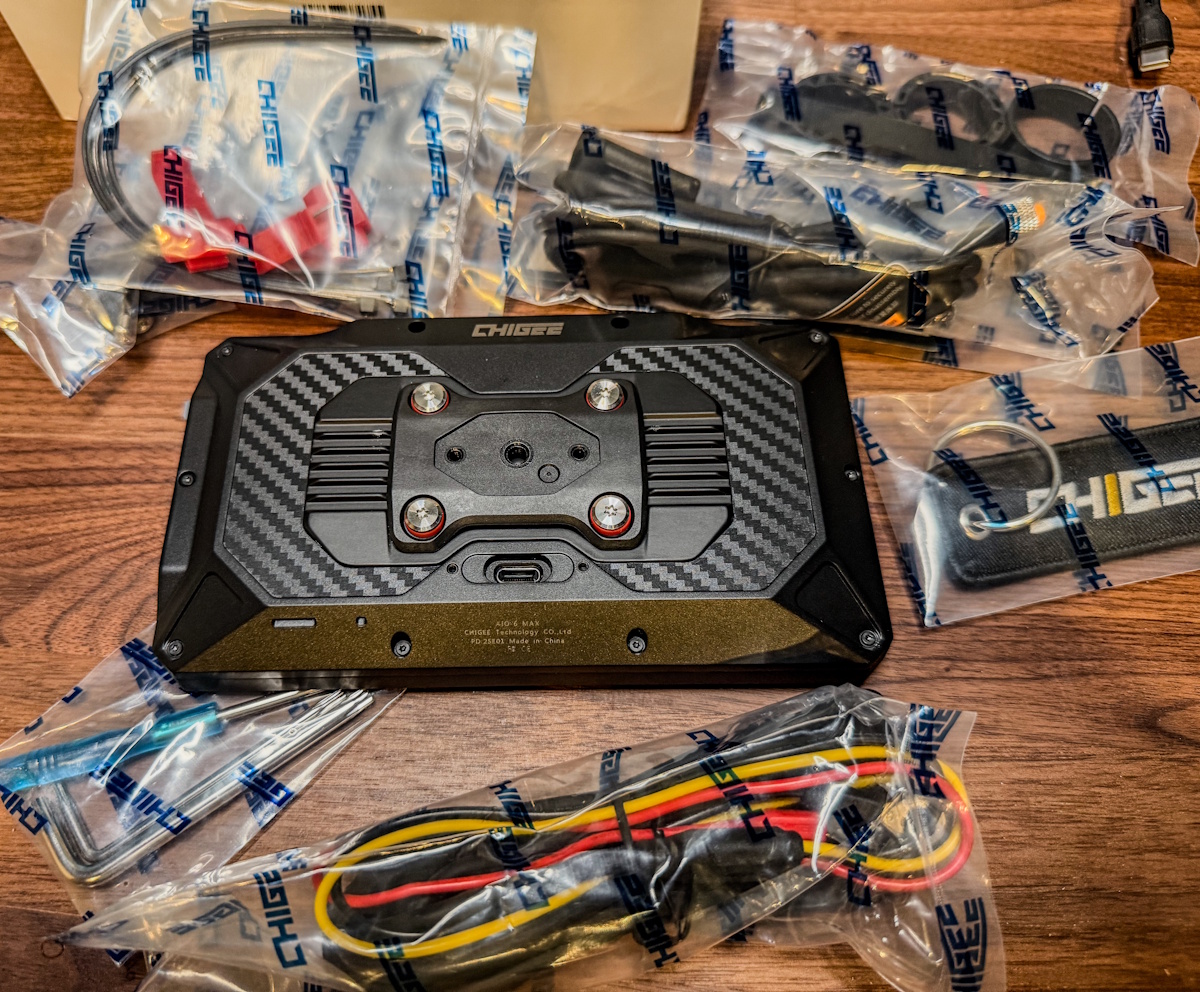

What’s included?

1 x Chigee AIO-6 Max Smart Riding Display – End of June ($460.00)
1 x 60fps HDR Cameras for AIO-6 Series ($179.00)

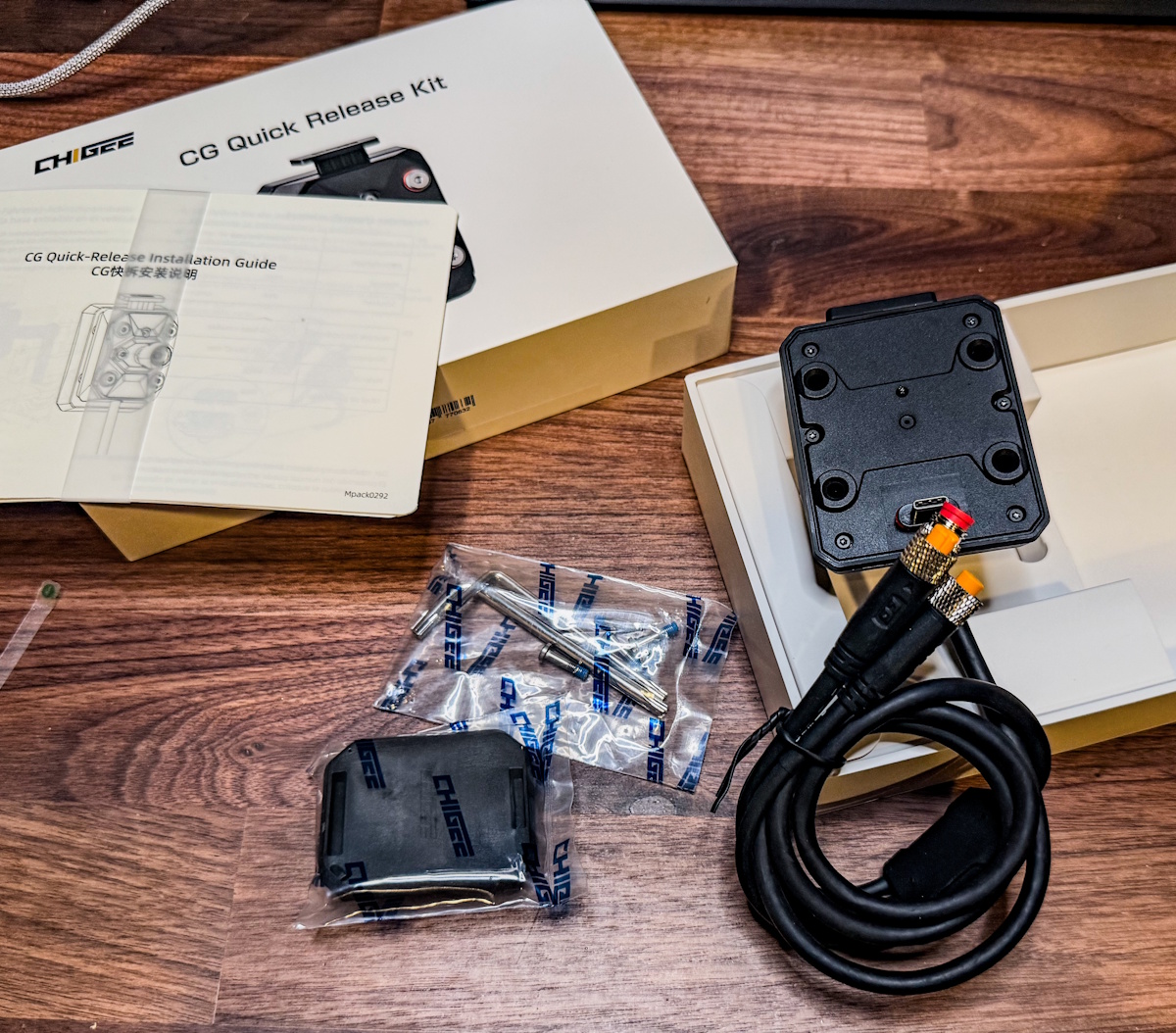

1 x CG Quick-Release Module for AIO-6 Series ($105.00)

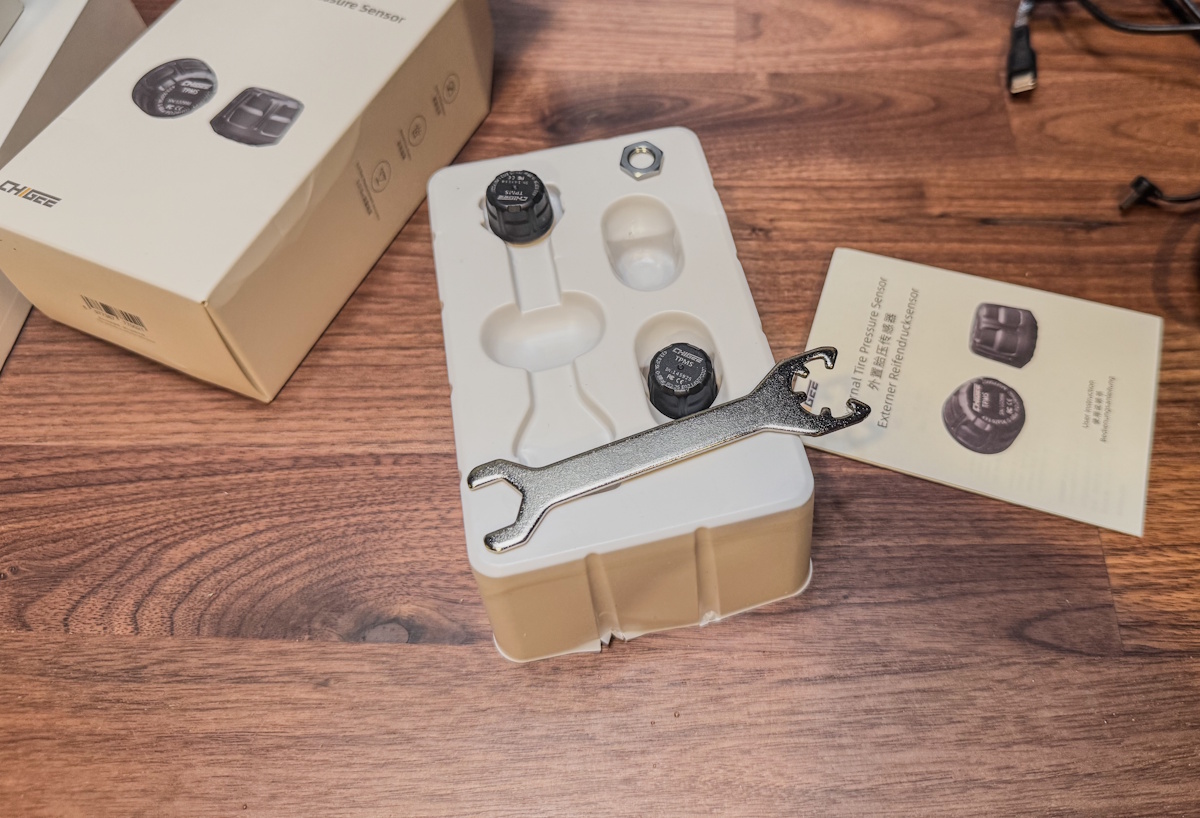

1 x External Tire Pressure Sensors – Pair (a set) ($94.00)

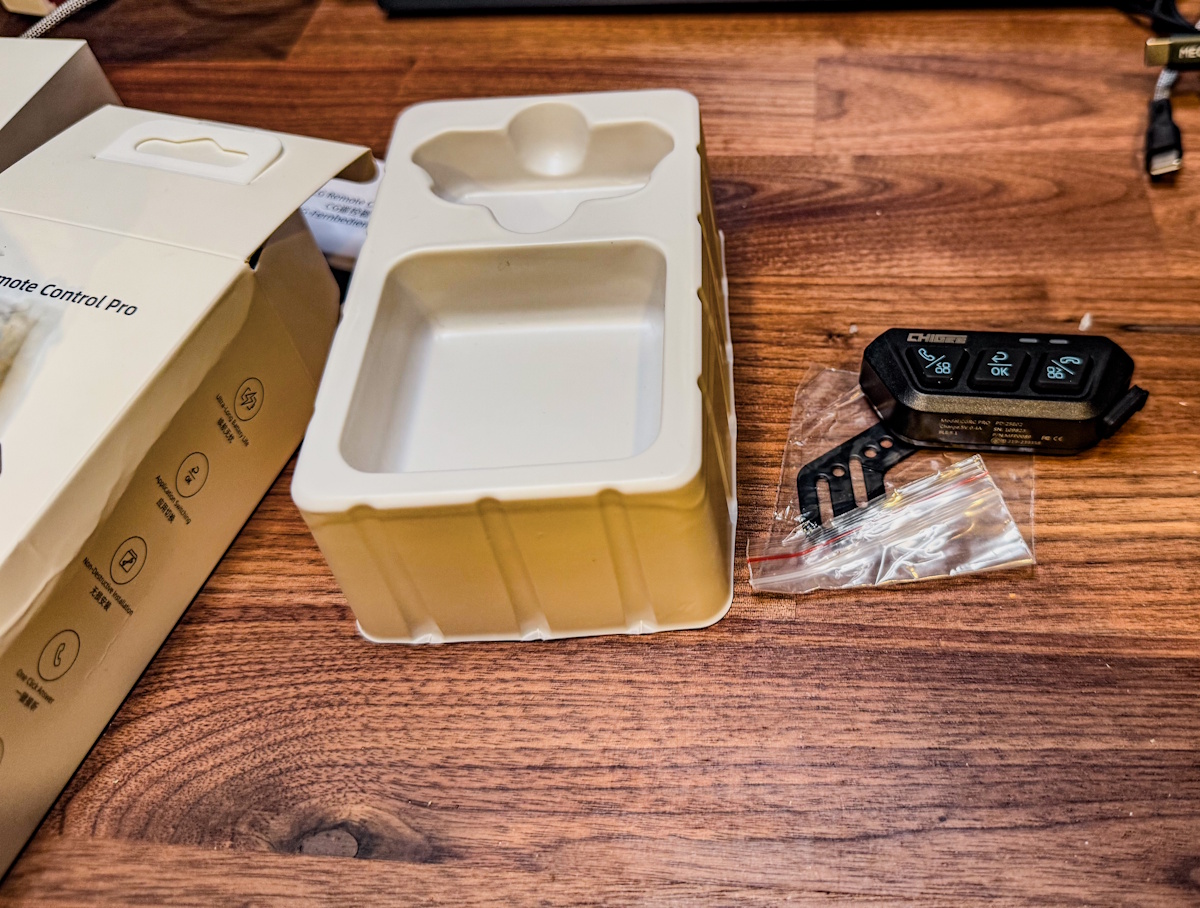

1 x CG Wireless Remote Control Pro ($98.00)

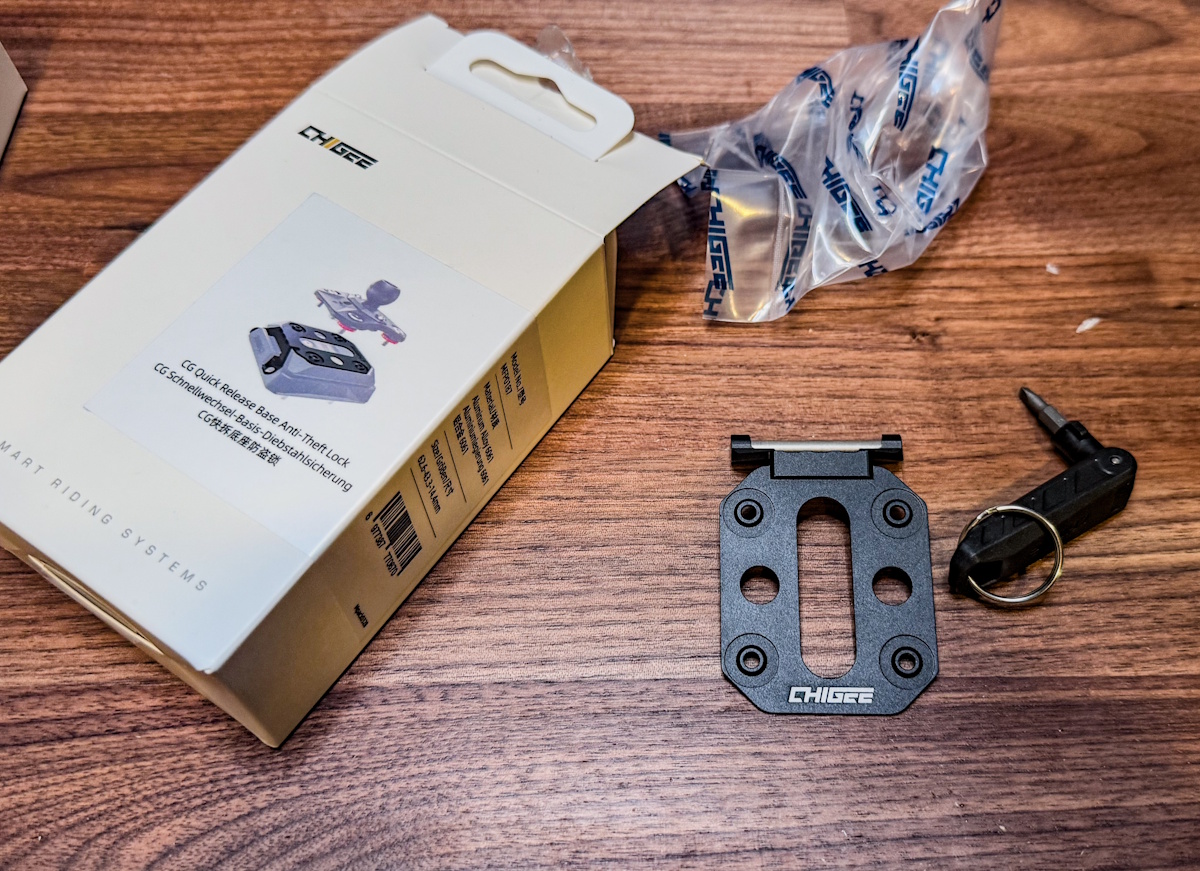

1 x Anti-theft Lock for CG Quick-Release ($49.00)
1 x Handlebar Mount for MFP0089 Remote ($16.00)

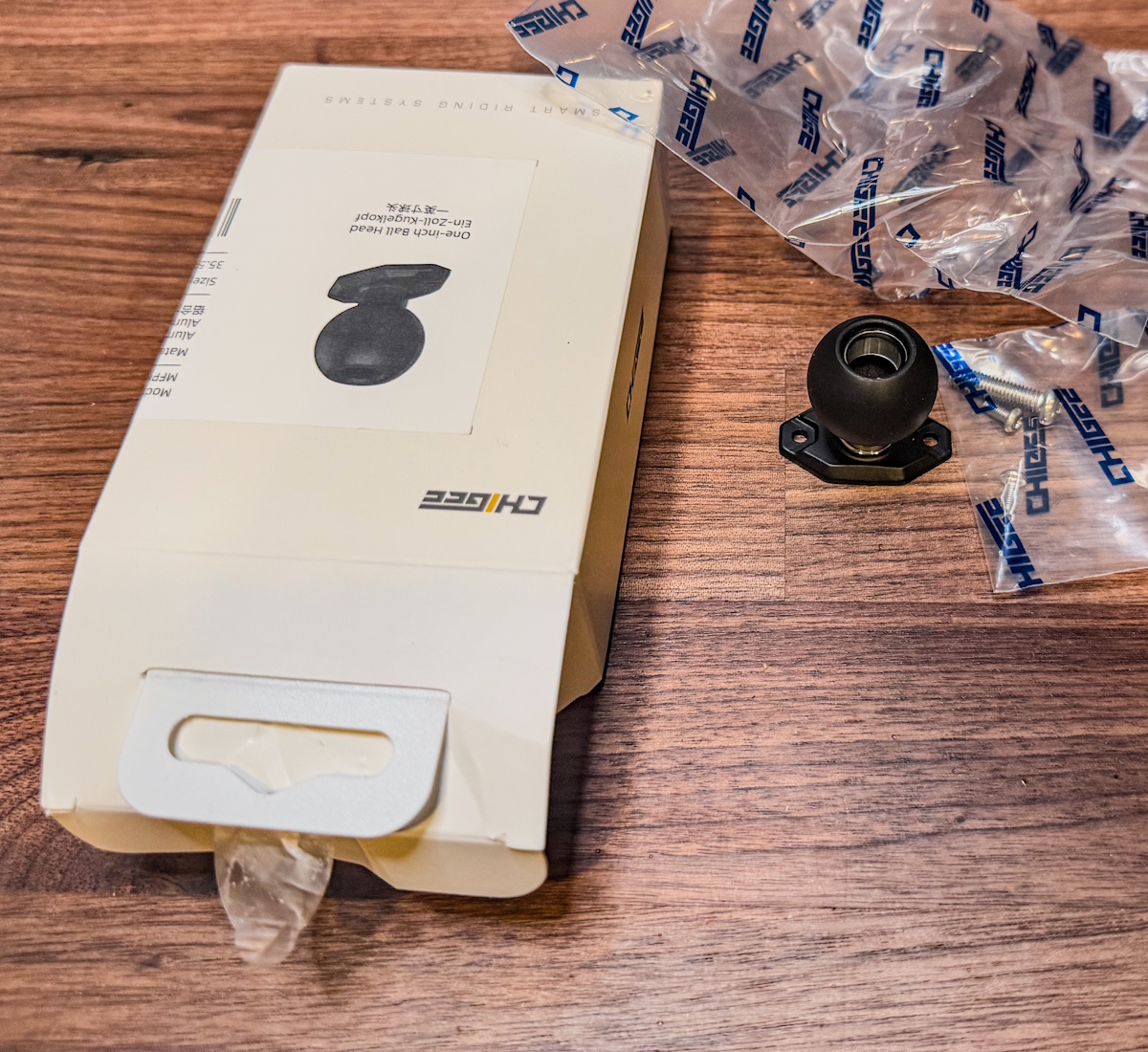

1 x 1″ Ball Head Adapter – 1″ Ball ($27.00)

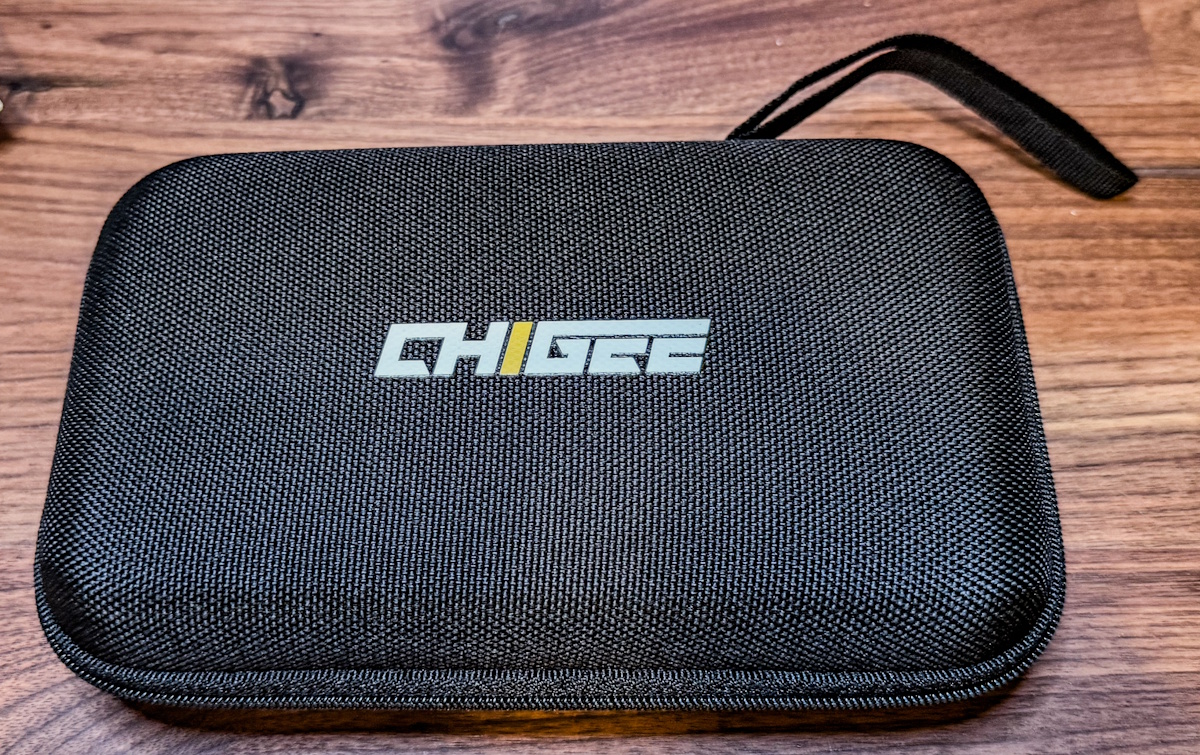

1 x Protective Storage Case for AIO-6 Series ($39.00)

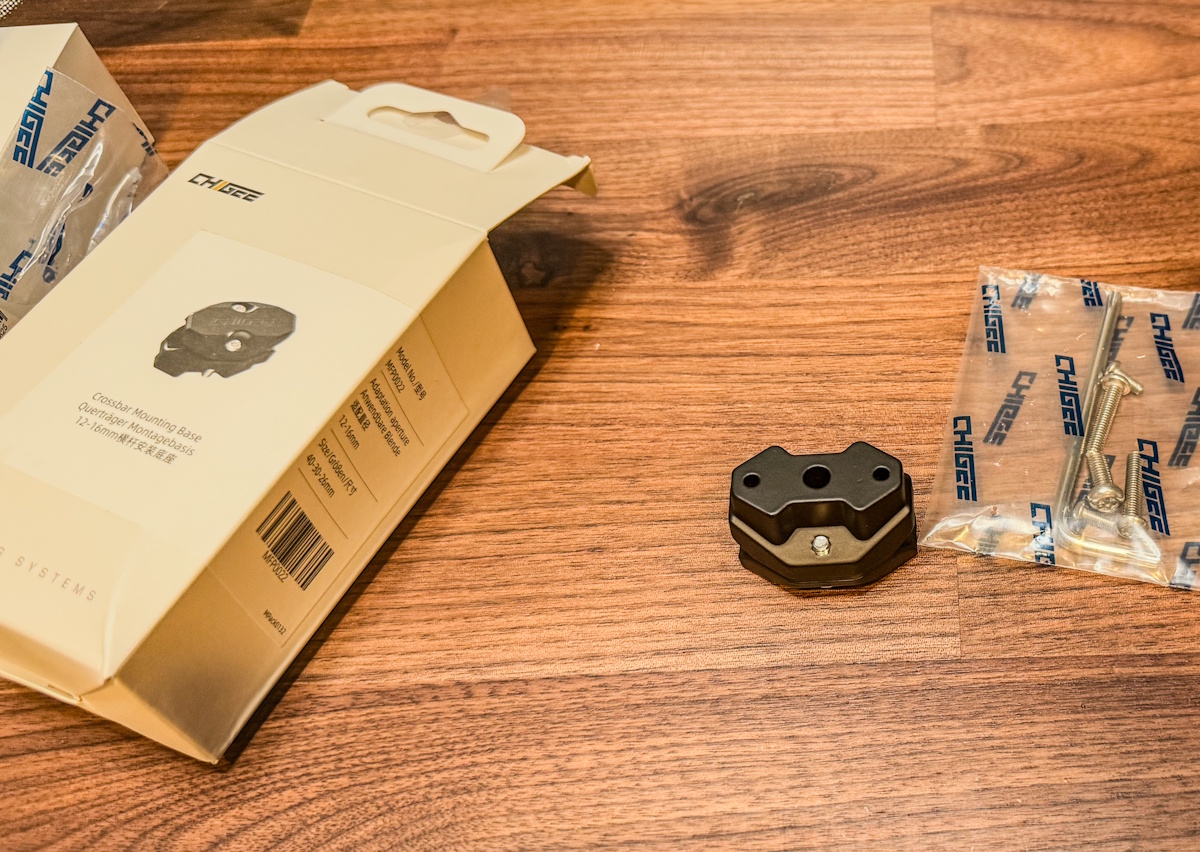

1 x Crossbar Mount (Φ12~Φ16mm) ($36.00)

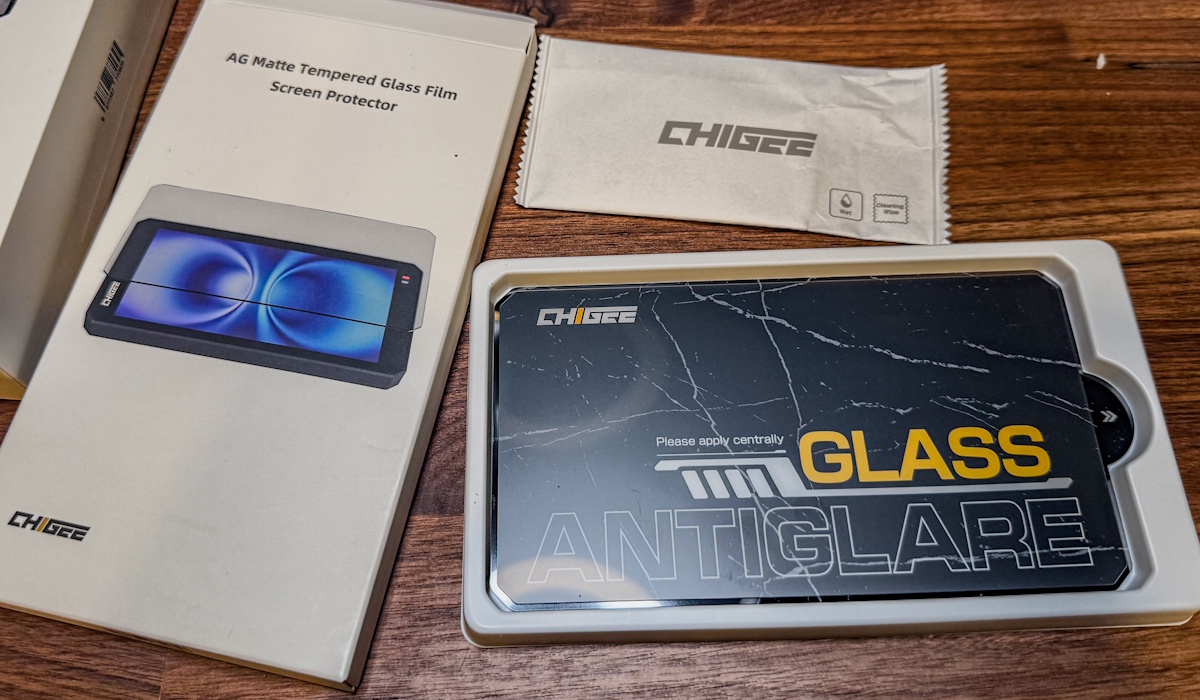

1 x Screen Protector for AIO-6 Series ($24.00)

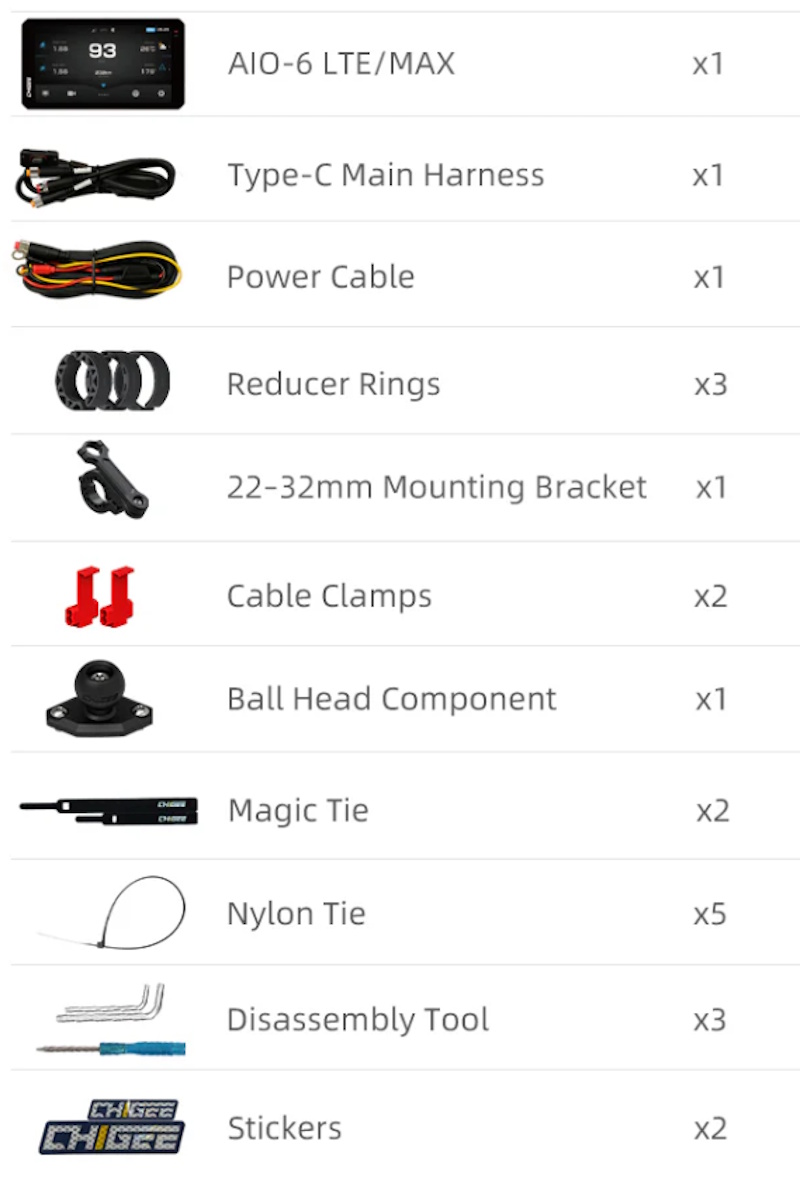

( Instruction Guides included with each device)

Tech specs

Design and features

• 6-Inch Ultra-Bright Display
  • IPS LCD screen with up to 2,300 nits brightness for clear visibility even in direct sunlight
• Wireless Smartphone Integration
  • Supports both Apple CarPlay and Android Auto for seamless control of navigation, music, calls, and messages
• Quick-Release Mounting System
  • Multiple mounting options, including CG Quick-Release, BMW Quick-Release, crossbar, or handlebar, allowing fast and tool-free installation and device swapping between bikes
• Optional Dashcam Integration
  • Supports front and rear 1080p dashcams at 60fps for high-quality ride recording, with image overlay of ride statistics and blind spot monitoring4
• AI-Powered Blind Spot Detection (BSD)
  • An advanced safety feature that monitors blind zones and provides visual and audio alerts for approaching vehicles
• 4G LTE Connectivity (on LTE version)
  • Enables live GPS tracking, security notifications, real-time monitoring, and geofencing through the Chigee GO app
• TPMS and OBD Sensors
  • Real-time tire pressure monitoring and engine diagnostics (OBD), available as add-ons
• Insta360 and GoPro Action Cam Integration
  • Control supported action cameras (Insta360, GoPro 11+) directly from the riding display
• IPX9K Water and Dust Resistance
  • Highly durable, with certified resistance to high-pressure water jets and extreme weather
• High Performance and Usability
  • 4GB RAM for smooth operation
  • Automotive-grade dual-side backlighting for consistent clarity
  • Auto-adjusting brightness sensor
  • Glove-friendly touch interface for on-the-go control
• Software and Upgrades
  • Over-the-Air (OTA) updates for easy software improvements
• Additional Riding Metrics
  • Displays critical ride info: speed, RPM, tire pressure, altitude, weather, lean angle, trip meter, ambient temperature, and more in customizable layouts
• Usable Across Multiple Vehicles
  • Quick-release design lets you easily move the unit between multiple motorcycles (or even use it in cars with the right mount)

The Chigee AIO-6 Max Smart Riding Display features a 6-inch IPS LCD screen with a resolution of 1280×720 pixels and brightness reaching up to 2000 nits. It works well, making it visible in bright sunlight. The housing is constructed from an aluminum alloy, and is IP69 waterproof and dustproof, and has built-in shock absorption.

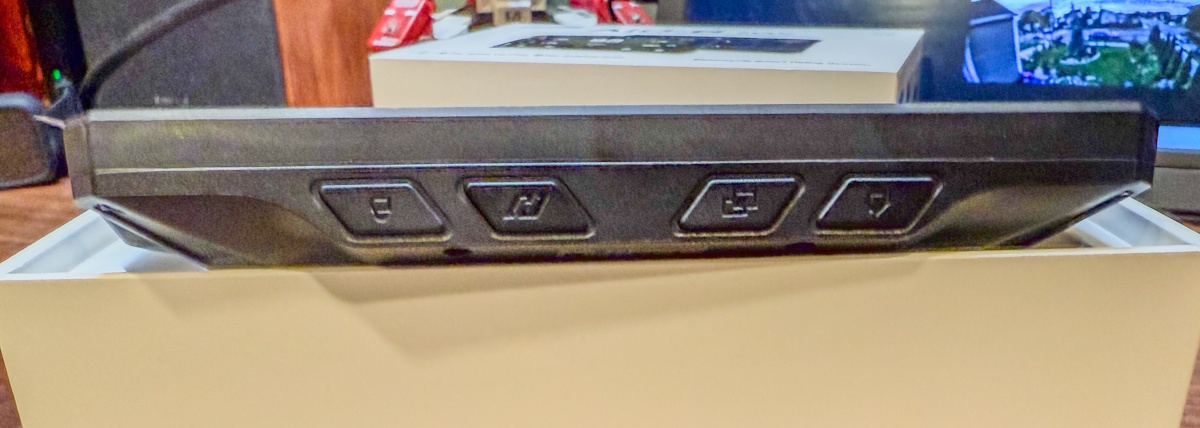

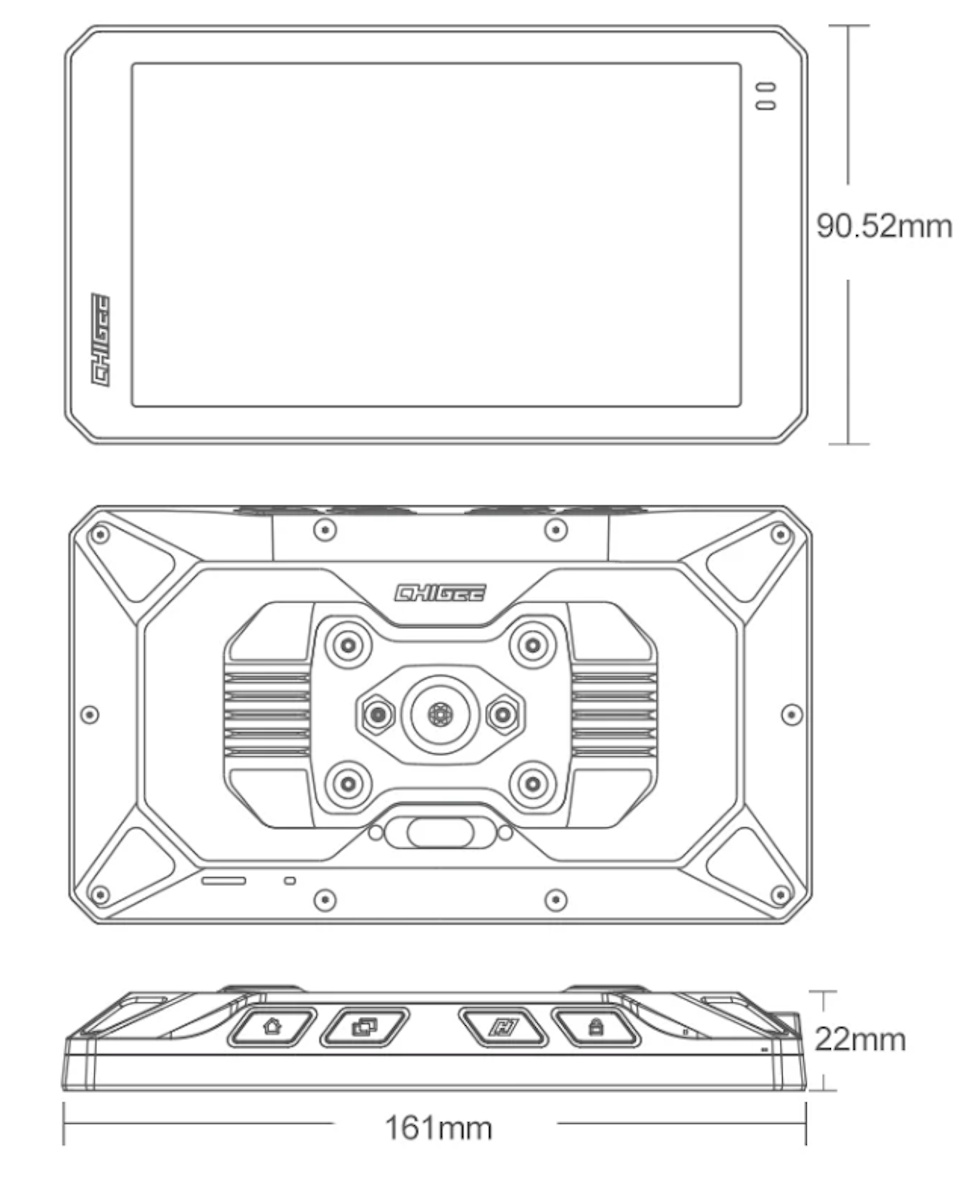

The device measures 161 x 90.5 x 22 mm and weighs 365 grams. On top of the Display, there are four large buttons for control. A front and Rear dash cam are included with this kit, along with all the mounting accessories for permanent or removable installation. along with additional features like Blind Spot Detection (BSD) sensors, Remote Control Pro, and Tire Pressure Monitoring System (TPMS) modules. There is a covered micro-SD slot on the side for camera recording, and the device accepts up to a 256GB micro-SD card.

Performance

The Chigee AIO-6 Max Smart Riding Display

The Chigee AIO-6 Max display is another great CarPlay/Android Auto display that is designed to fulfill the need for a smart motorcycle dashboard. It features the usual exceptional build quality that Chigee is known for and provides all the functionality that I need and then some. I did not include a separate section in this review for installation, because it is simple and straightforward. The front and back cameras connect using the usual bike connectors, and the wires are marked. There are only two connections to the Head Unit. The main cable includes the ground, power, and accessory power cables, and the two other cables are for the cameras. Making it simple, you mount the Head Unit, mount and connect the cameras, connect to power and ground, and you are good to go.

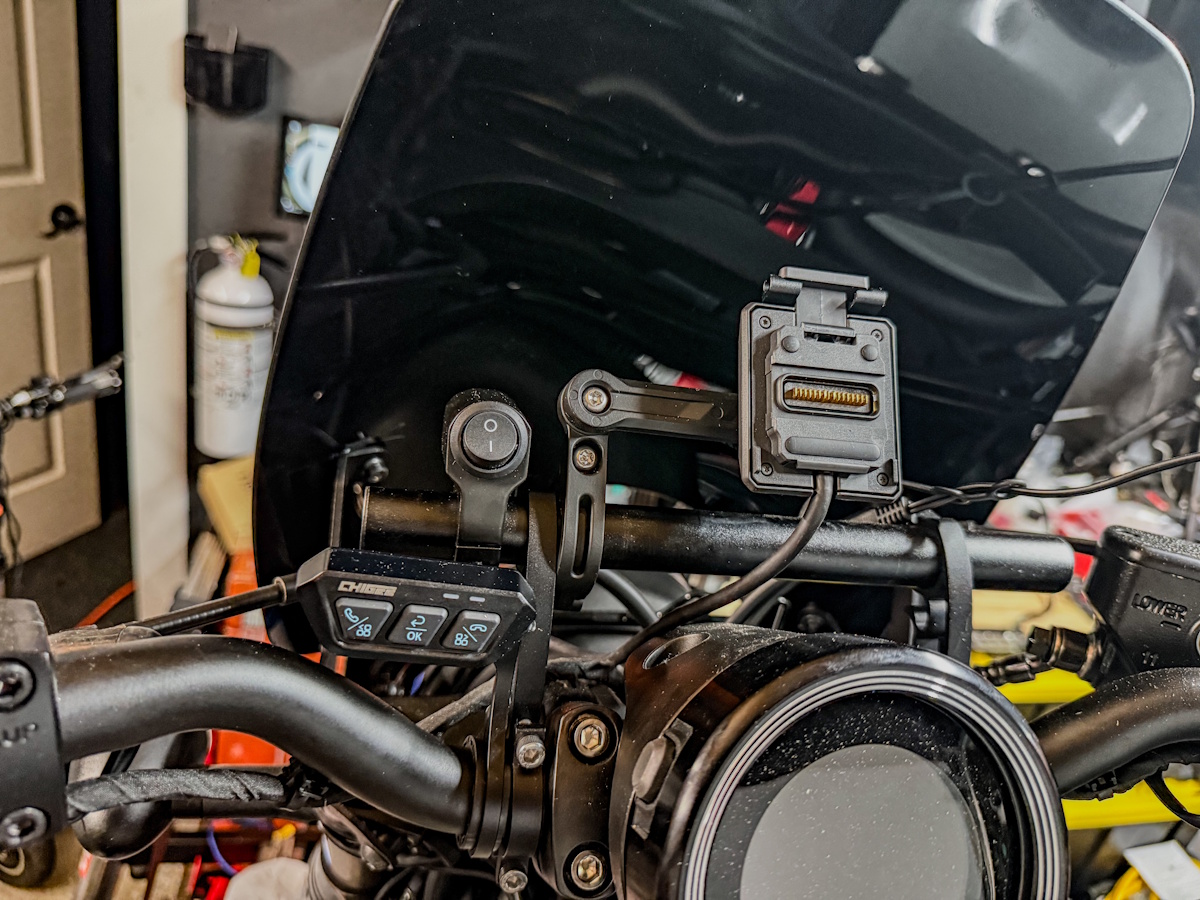

For my installation, I used my own extra-strength 3M double-sided adhesive tape to mount the cameras. This is not to say that the tape included is not great. However, it can be difficult to find desirable places on some models of bikes to mount cameras, so I take extra precautions to make sure that they are secure. I sometimes add zip ties for extra security. I decided to install the head Unit/Display as removable so which required me to remove the preinstalled bracket and mount the removable bracket. Chigee provided all the necessary hardware for either installation. I then ran the rest of the wires along the inside of the bike frame to the space under the bike seat. There, I connected the ground wire to the negative terminal of the battery. Since I do not like to use the accessory power option, I incorporated a switch into my design. I normally do this with all similar installations, so I can easily move devices from bike to bike. I will explain more about this in the video below.

Now on to the display. The Chigee AIO-6 Max display is bright, the touchscreen is responsive, and the functionality is second to none. Apart from the normal CarPlay options, this unit offers additional diagnostic information about the connected vehicle, including battery voltage, etc. There are too many options for me to mention here, but I will highlight some. For instance, Chigee also included the TPMS kit (Tire Pressure Monitoring Kit) so that the tire pressure is displayed for both tires. There is a remote control that allows me to manipulate the options and manage phone calls. The device functionality also supports real-time data streaming like you get from a normal OBD-II sensor (engine temperature, battery voltage, RPM), built-in sensors for GPS, accelerometer, and even a microphone.

It is worth mentioning that there is an LTE version of the AIO-6 that allows you to use a cellular SIM card, which adds several more features, including, for instance, notifications to folks you designate if you are in an accident, etc. Also, the AIO-6 allows connection and camera control with the Insta360, X5/X4, and others in the series. This is nice when shooting videos and not having to worry about being distracted by reaching for the smaller camera screen or even the Insta360 wrist remote to access functions or settings.

Overall, the CHIGEE AIO-6 Max is an amazing device for me, especially since it fulfills all my wants and needs for a highly functional motorcycle display system. In addition, its build quality, sleek design, shock absorption, and wide connectivity and expansion capabilities, IMHO, make it second to none. Well done.

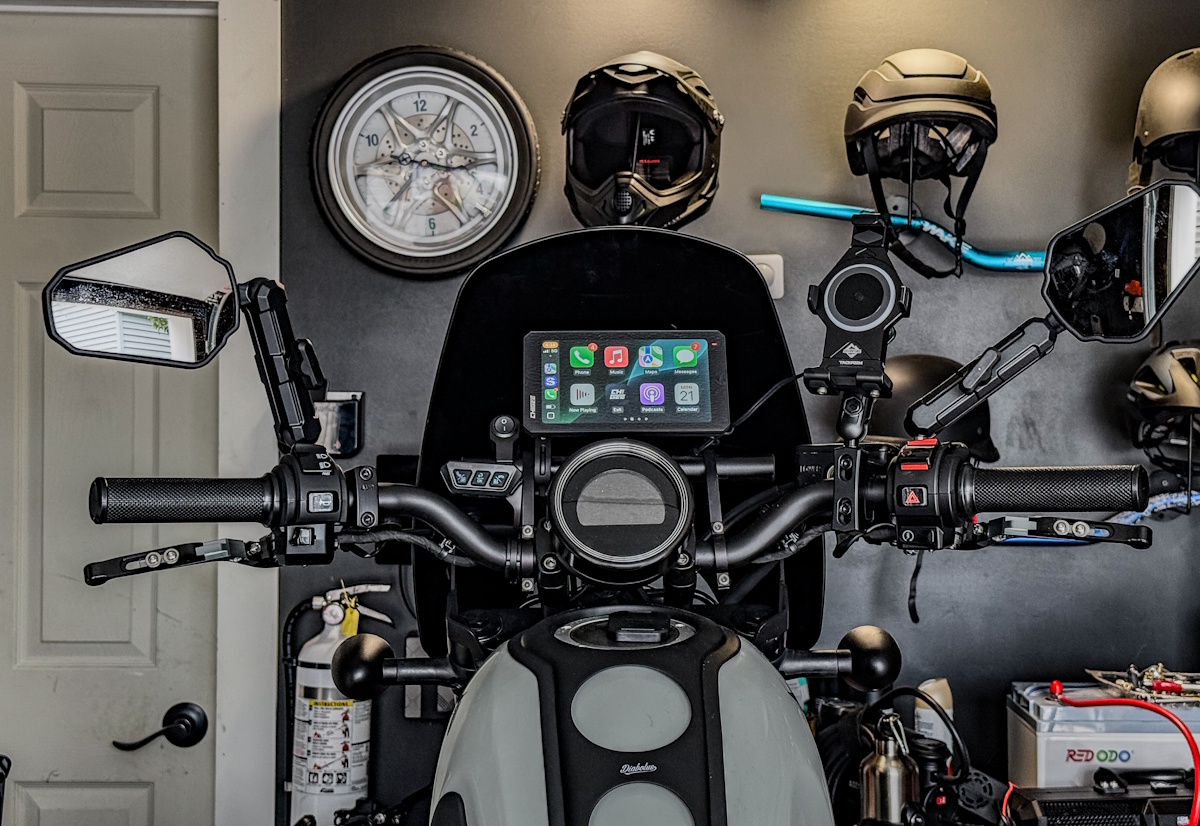

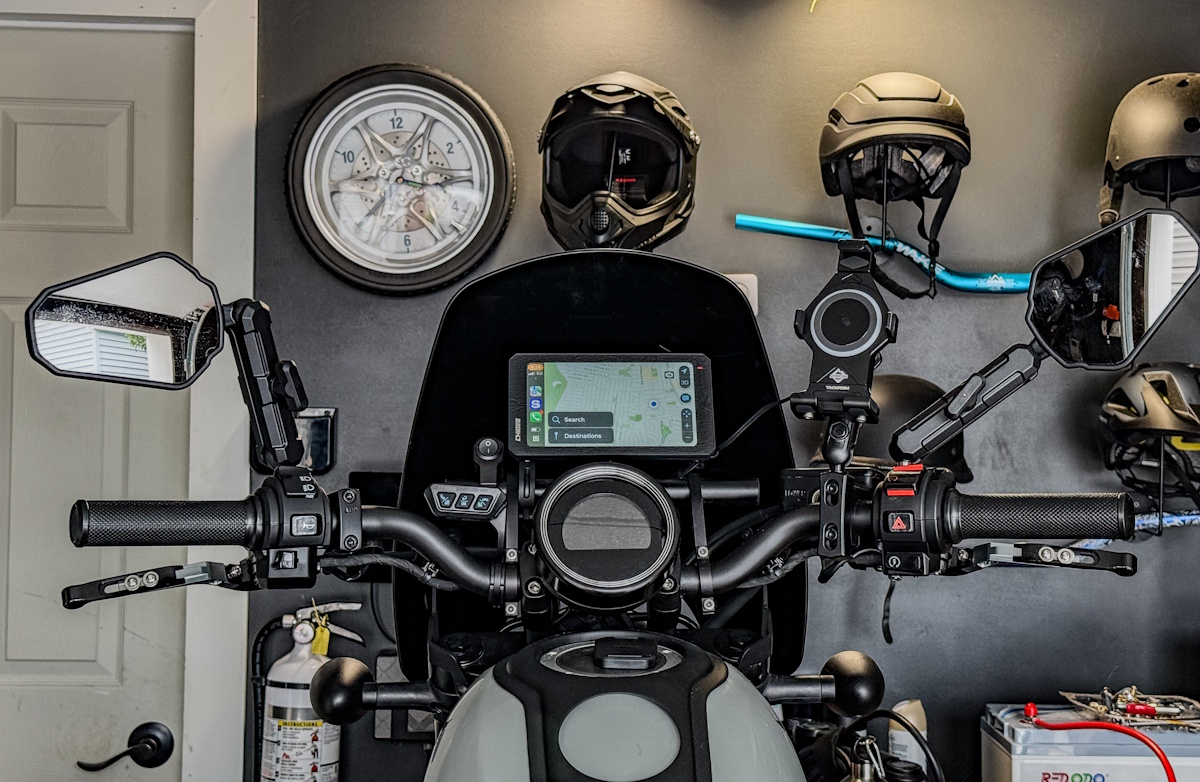

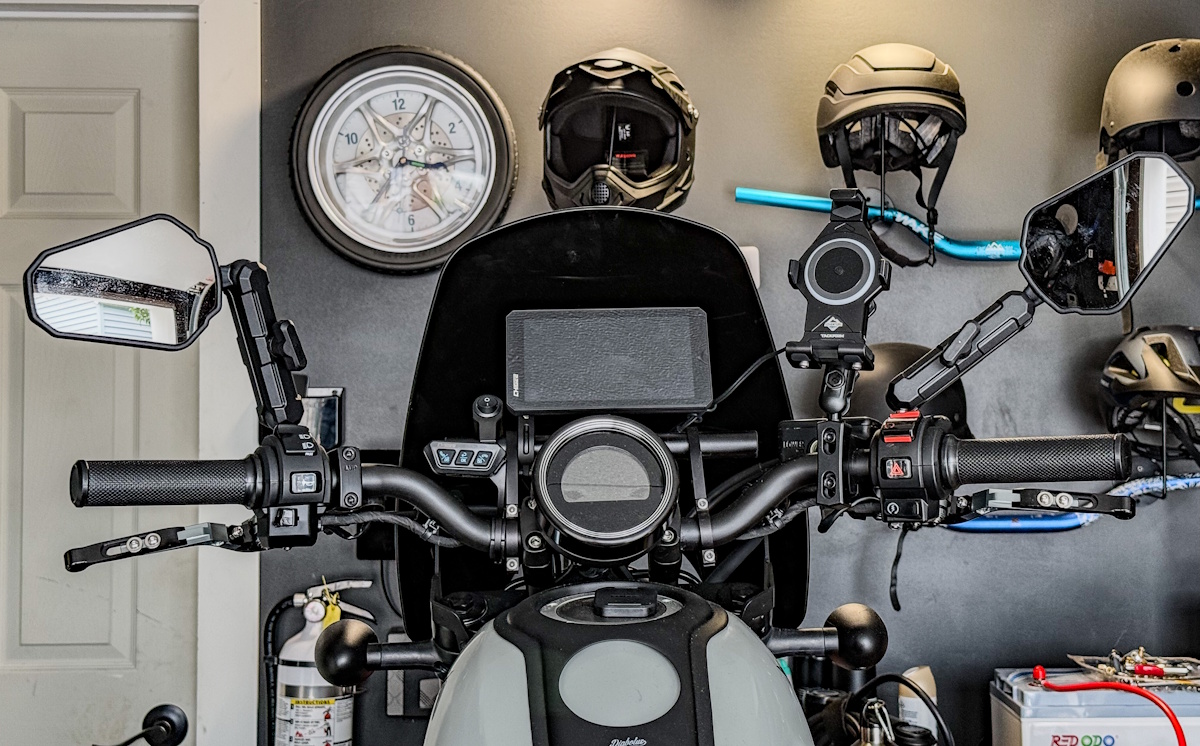

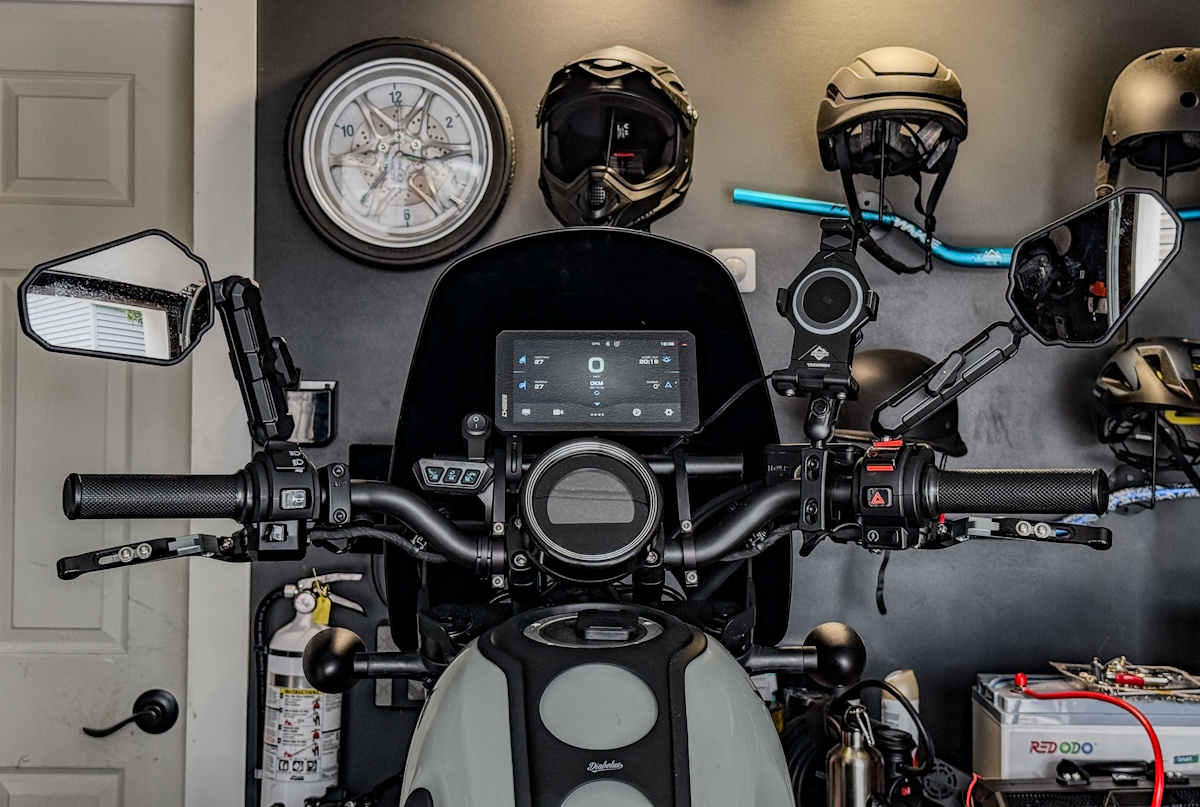

Here is an overview of the Chigee AIO-6 Max Smart Riding Display on my bike:

Final thoughts

The Chigee AIO-6 Max Smart Riding Display is another fantastic CarPlay device from a company that produces great gear. From the performance and quality of the head unit to the same attention to detail applied to every accessory, everything is done right. The removable Head Unit is a fantastic feature, and the built-in functionality is amazing. Well done!!

What I like about the Chigee AIO-6 Max Smart Riding Display

• It is built like a tank
• It is sleek and attractive
• The option to install the Head Unit to be removable on the go
• It is easy to mount and install
• The touchscreen is large and responsive
• It provides a lot of information and tools, including information on the vehicle
• Everything that is needed is included
• There are several add-on accessories available

What needs to be improved?

• I love everything about it

Price: $460
Where to buy: Chigee website and other versions are on Amazon
Source: Chigee provided a free sample for this review. Chigee did not have a final say on the review and did not preview it before it was published.
