Qcam 530ml Plus Webcam

Gadgeteer Hands On Review by Ellen Beeman

March 04, 2004

Product Requirements:
Device:
Windows 98 and higher, USB port


I love webcams. Most of my family live overseas, and we rely on instant messaging with webcams to stay in contact. I am always eager to try new webcams, and was especially interested in this model from Crayton Electronics.

The Qcam 530M is a very small webcam on a 6” flexible gooseneck cable attached to a odd-shaped plastic stand, with a 42” USB cable. The physical design is good… the cable is long enough to reach to a below-the-desk CPU, and the flexible gooseneck means you can easily adjust the angle of the camera.

I know they made a compromise between size and function, but I do think the bottom should have been more weighted, since you are limited in the angles you can bend the cable just because the device won’t stay upright at more extreme angles. And it is a little awkward to have the webcam on a stand directly in front of the monitor, blocking some of my monitor view. But I like the flexibility of camera angles to our current webcam, which, like most models, sits in a small holder on top of the computer monitor and can’t be adjusted to as many camera angles. Since I frequently use IM and the webcam while I have my somewhat hyperactive 5-year-old daughter sitting in my lap, being able to quickly bend the cable and reposition the camera is a major plus for me.

The size of the webcam is also terrific; I can easily see bringing this along with my laptop on business trips, even though this is not the Q-cam model specifically designed for laptop use.

Hardware Specifications

Camera Lens: 1/4" CMOS PC Camera
Pixel: CIF Format 352*288
Resolution: 640*482, 352*288, 320*240, 176*144, 160*120
Frame per second: Up to 30fps@352*288, 35fps@176*144
Capture Resolution: Up to 640*480
Focus Distance: 3cm~infinity (CIF)
Lens: wide angle 56 degree Diagonal
Brightness: Auto-Detect
Exposure control: Auto-Detect
Image format: RGB24
Power consumption Full Run: 300mw typical
Operating System: Windows 98/2000/Me/XP
I/O interface: USB 1.1 Full Speed
Microphone: -47 DB

Unfortunately, the first negative is that the Q-Cam wouldn’t work on our powered and non-powered Belkin USB hubs, or the USB jack on our Microsoft Natural Keyboard Pro. It would only work on a USB port directly on my CPU. I’ve seen this problem with some other USB devices, and it is frustrating. If you don’t have many USB devices, this won’t be a concern for you, but if you’re like me, this is a problem.

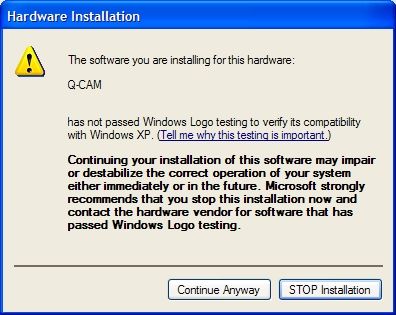

I tested this on a Pentium III running Windows XP, and had to install Q-Cam’s own drivers. Here was the screen that greeted me:

To be fair, there are many terrific hardware devices that have not passed Windows driver certification. But it was still “edge of my seat” excitement during the installation process and reboot. After rebooting, the device and drivers were immediately recognized, and I put the camera to work:

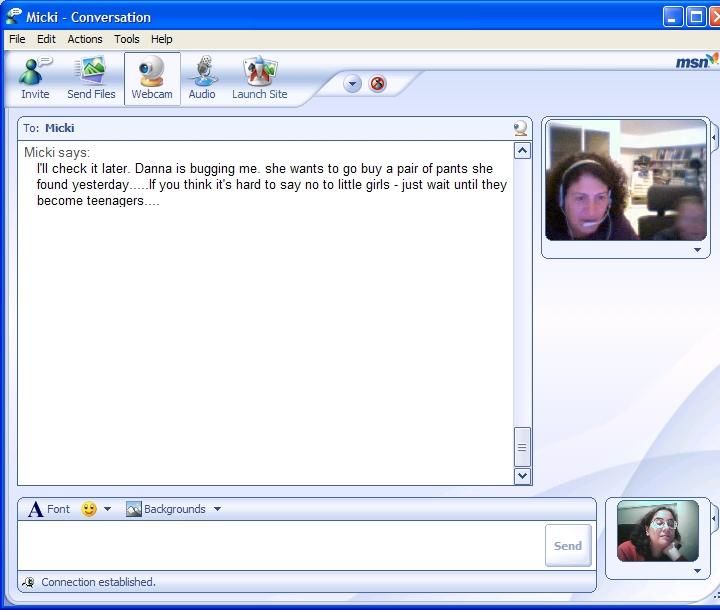

The streaming video image quality from the camera was good (the lower image) for an inexpensive webcam, much better than my current (and also inexpensive) SiPix webcam. It compares well to the slightly more expensive Logitech webcam used for image above (though low lighting may have been part of the cause). Like all other webcams I’ve used, this one performs best in a brightly-lit room. You’re trading picture quality for the risk of glare, but I think it’s worth it. There was some occasional freezing during video capture, but considering the distance and lag-time of the international connection, that may not have been a problem with the hardware.

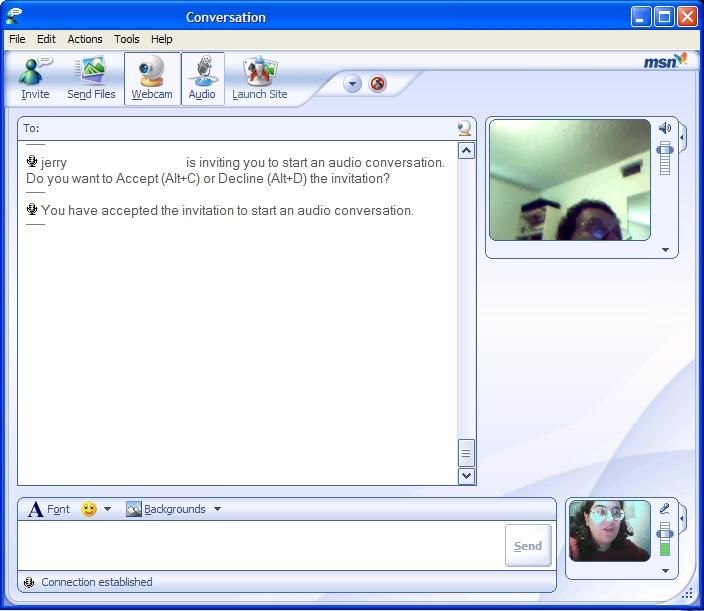

Next, I added audio to the webcam chat. The audio was surprisingly clear.

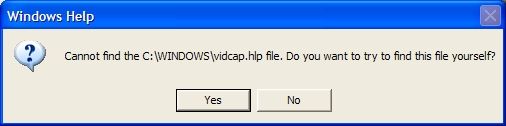

After a few minutes of IM chat, I began exploring the other software included on the mini-CD. The two programs are Vidcap and Amcap (a rather aged Microsoft video program.) Both programs have many features such as the ability to change the video and audio settings, adjust the camera image parameters, etc., but neither of them performed particularly well with the Q-cam. With Vidcap, the video was noticeably darker and more grainy than when I used the MSN Messenger webcam software. And if you want to access the Help file for Vidcap, well, this is what you’ll see…

It is not included on the mini-CD.  However, for my intended use of the webcam (MSN Messenger streaming video webcam chat), the missing file was not a problem.  There are sufficient instructions on the back of the package for me to easily get this webcam up and running.

Another odd aspect of this camera is that it has a button on the back to activate three white LED lights.  I’m not sure why they were included, as they appear to have no effect on the webcam image quality.

In summary: if you need a high-end webcam with the ability to capture quality streaming video and still images, or are very new to webcams and will need substantial documentation to get you started… this is not the webcam for you.  But the Q-cam 530M is a very portable webcam that compares well to other inexpensive webcam products.


Price: $44.99

Pros:
Small
Easy to install
Flexible cable
Reasonable video quality
Good audio

Cons:
Unable to work with USB hubs
Minimal documentation
